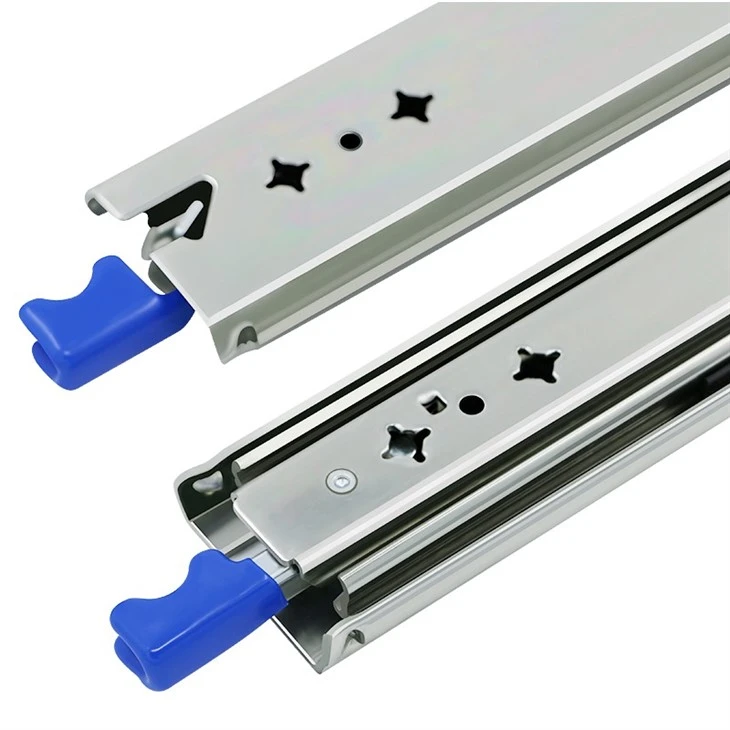

600mm Full Extension Heavy Duty Drawer Slide

HA5333-600mm inches Full Extension Heavy Duty Drawer Slide

Functions and technical features‌
‌Locking mechanism‌: Two-way automatic locking (only effective in fully closed/fully opened state) to prevent the drawer from sliding during bumps‌.
‌Full extension design‌: The three-section rail structure supports 100% pull-out, making it easy to take and put items deep in the drawer‌.
‌Self-cleaning and rust-proof‌: Special process reduces dust accumulation and extends service life‌.
‌Buffering and silent‌: The damping model reduces the closing impact sound, and the noise can be reduced to 30-45 decibels‌

Applications: Industrial, Outdoor, Kitchen, Office, Hospital
Brand Promise: Durable, Reliable, Smooth Operation for Heavy Use.

Application scenarios and cases
Industrial equipment: such as mechanical arm support in welding workshops, reducing downtime losses 78. Medical and special environments: Stainless steel is resistant to alcohol corrosion and is used for CT room push beds or high-temperature equipment. RVs and furniture: Anti-displacement on bumpy roads, improving the stability of kitchen drawers or wine cabinets. Warehousing system: Optimize shelf space and reduce the rate of goods bumping by more than 30%. 6. Purchase suggestions
Load-bearing priority: Select the model according to the load (such as 76mm rail for >200kg). Environmental adaptation: Choose galvanized models for humid environments and stainless steel for high-temperature scenes. Functional trade-offs: The technology for arbitrary stop function is not mature at present, and the locking model is safer. Size matching: Track length ≤ cabinet net depth minus 20mm, drawer depth is 5 cm multiples

Using top-class lever ball bearing, so that the drawer runner can move very quiety, and don't need much force.

With 2.0 mm thichness Q 235 B cold rolled steel plate, make the drawer runner can with the 115 kg weight loading.

Lock the drawer making your drawer wouldn't be opened when it's moving, more safety.



Brand Name	HVPAL	Material	Hardened Cold Rolled Steel plate
type	HA5333	Finish	Clear Zinc Electroplate
Loading capacity	115KG/450MM(18'')	Height	53mm
Length	24 inches 609.6mm	Application	Kitchen, Cabient,Industrial drawers, Outdoor, Office Building, Hospital



APPLICATIONS
