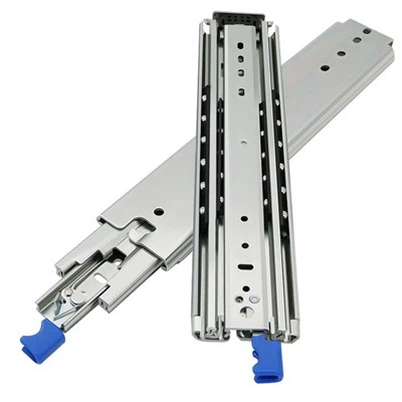

500mm Lock Heavy Duty Drawer Runner

HA7613-500mm lock heavy duty drawer runner

The product details of this slide rail are as follows：

-- Load rating: 227kg/pair(18")450mm

-- Extension: 100% full time extension
-- Material: hardened cold rolled steel

--Feature: with lock function
-- High: 76 mm
-- Steel plate thickness: 2.5*2.5*2.5mm

Material and load-bearing capacity
Heavy-duty rails are made of high-strength cold-rolled steel (thickness 1.5-2.5mm), with galvanized or blue-galvanized surface treatment to improve rust resistance and wear resistance. Load-bearing capacity can be divided according to the model:

51mm wide rail: load-bearing 150 pounds (about 68kg), suitable for ordinary machinery or light furniture.
53mm wide rail: load-bearing 300 pounds (about 136kg), with locking and damping functions, suitable for RVs or medical equipment.
76mm wide rail: load-bearing 460 pounds (about 220kg), industrial-grade applications such as welding workshops or heavy-duty shelves.
Key parameters also include single-sided installation clearance (such as 19±0.3mm) to ensure stable operation under load.
3. ‌Functions and technical features
Locking mechanism: two-way automatic locking (only effective in fully closed/fully opened state) to prevent the drawer from sliding during bumps.
‌Full extension design‌: The three-section rail structure supports 100% pull-out, making it easy to take out and put deep items‌.
‌Self-cleaning and rust-proof‌: Special process reduces dust accumulation and extends service life‌.
‌Buffering and silent‌: The damping type reduces the closing impact sound, and the noise can be reduced to 30-45 decibels‌

New locking design. You need to press the blue button to open or close the drawer. It will lock when a full extension or closed.

Constructed with 2.5 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.



APPLICATIONS

FAQ

Q:Why choose us?
a) we are manufacturer with good quality control,excellent raw materials and production technology
b) attentinve services
c) on time delivery

Q:Can I get a sample for free?
Yes, we can provide free samples but you should take care the freight.

Q: What is your payment terms?
T/T and L/C, 30% deposit in advance, balance before shipment.
