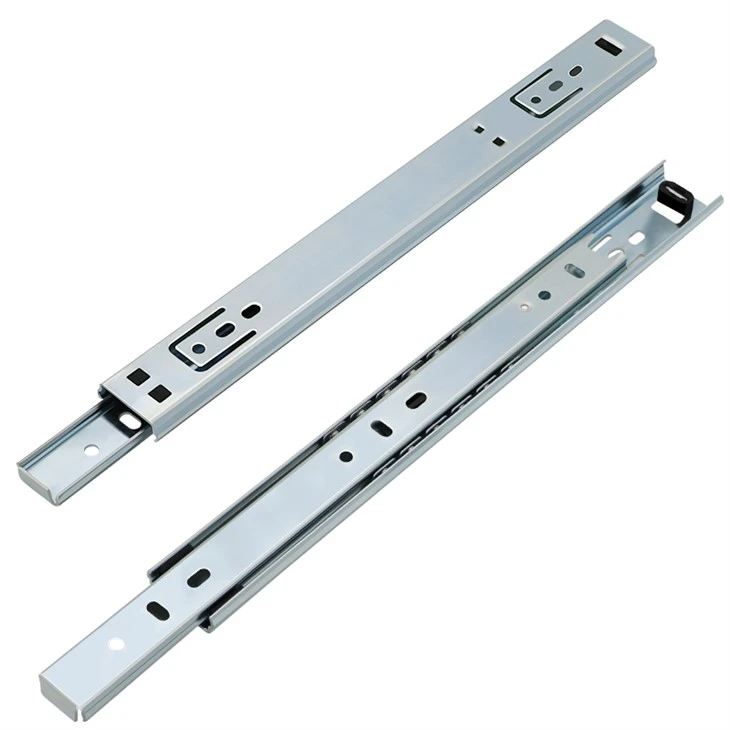

2 Section Full Extension Drawer Slides 25kg

HA2702 2 Section Full Extension Drawer Slides 25kg

HA2702 is a 2 fold ball bearing slide available in lengths from 12" to 22" , suitable for drawers and cabinets of various depths. Made from cold-rolled steel, it offers stable structural strength with a dynamic load capacity of 25kg per pair, making it ideal for furniture, kitchen cabinets, industrial drawers, and tool cabinets.

The slide comes in two surface finishes. Zinc-plated is suited for indoor furniture and office cabinets, offering a clean appearance and smooth glide. Black finish is better for tool cabinets and industrial environments, being dirt resistant, more wear-resistant, and slightly quieter in operation.

The ball bearing structure ensures light and smooth movement. A rubber bumper and mechanical stop at the end prevent the drawer from being pulled out accidentally. For installation, cabinet depth should exceed slide length by about 10mm, and side mounting requires approximately 12.7mm of slide thickness per side. If drawer width exceeds 600mm or the load is heavy, adding a third slide underneath is recommended for better stability.

Detachable & Snap-On Option  Easy installation and removal

2 Section Ball Bearing Design
Simple structure with smooth and stable drawer movement.

The ball bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Cold Rolled Steel
Model Number	HA2702	Finish	Clear Zinc Electroplate
Loading capacity	25KG/450MM(18'')	Height	27mm
Length	12"-22" (250-650mm)	Application	Fruniture, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports



APPLICATIONS

Suitable for document storage furniture where drawers are used for folders, papers and office records, helping keep frequently accessed documents organized.

Can be used in back-office or counter storage drawers for packaging materials, labels, small products and daily-use supplies.





Suitable for laboratory storage drawers used to organize small tools, accessories, containers and other non-heavy equipment.





Used in home storage furniture for organizing small household items, stationery, accessories and other daily necessities while keeping the cabinet interior tidy.



Q1:Why choose HA2702 over 3 fold slides?

Slimmer Profile: The simpler 2-fold structure takes up about 15% less side-mount space than 3-fold slides, making it ideal for narrow cabinets.

More Cost Effective: Lower unit cost makes it a smart choice for large-scale furniture production.

More Durable: With no middle rail or complex ball cage, there are fewer components to fail. It resists dust jamming better, making it more reliable in industrial environments.

Q2: Is it normal to hear a "click" when the drawer reaches the end of the slide?

Yes, this is normal. This slide has an end-stop structure that prevents the drawer from being pulled out too far. The slight "click" comes from the ball bearings contacting the stop at the end of the slide.

If the sound is a little loud, applying a small amount of white lithium grease to the end of the slide can help reduce the noise.

Q3: Is HA2702 suitable for children's furniture?

A: For children's furniture, soft-close slides are generally a better option because they slow the drawer down as it closes. HA2702 is a standard ball bearing slide without a built-in damping function, so the drawer may close more quickly and could pose a finger-pinch risk.
