Heavy Load Bayonet Mount Drawer Slides

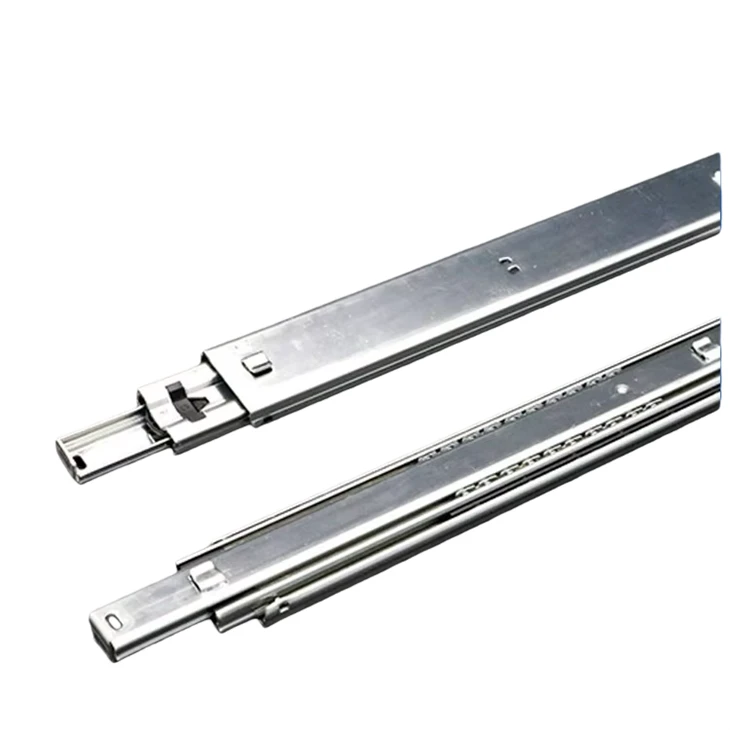

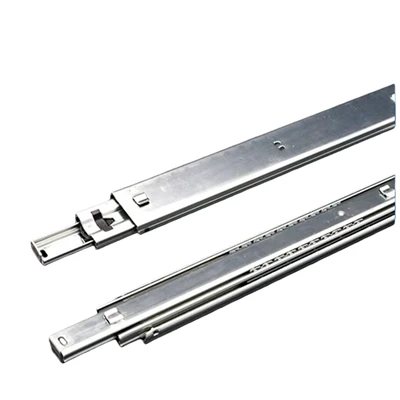

HA 5313 Heavy Load Bayonet Mount Drawer Slides

Some drawers don't stay in one place forever. They get pulled out for cleaning, taken off for repair, or removed when the cabinet needs to be moved. That's where the HA5313 comes in. It's a three-section heavy duty slide with a Bayonet mounting design, so the drawer can be separated from the slide without taking the whole rail off the cabinet.

The full extension structure lets the drawer open all the way, making it easier to reach things stored at the back. It's built for cabinets, office filing cabinets, and furniture drawers where the drawer carries real weight and still needs to come out once in a while. Lengths run from 12 to 30 inches, with special lengths available on request. Zinc plated blue and black finishes are both available. If your project needs a slide that holds up under load and still lets the drawer come off when you need it to, the HA5313 is worth a look.

2.0×2.0×2.0 material thickness for greater structural strength and durability.

Three section full extension pulls out completely for easy access to the entire interior.

The ball bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Cold Rolled Steel
Model Number	HA5313	Finish	Clear Zinc Electroplate
Loading capacity	115KG/450MM(18'')	Height	53mm
Length	12"-30" (305-760mm)	Application	Kitchen, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports



APPLICATIONS

Retail Storage Cabinets
Used in storage cabinets in retail stores or warehouse areas to help organize and access inventory.



Custom Furniture Projects
Suitable for customized furniture projects, with different slide lengths available to meet various cabinet dimensions.



Industrial Workstation Drawers
Suitable for industrial workstations and storage drawers, helping keep tools and components organized within the working area.

Service & Maintenance Cabinets
Used in tool cabinet drawers for equipment servicing and maintenance, allowing technicians to keep commonly used tools and spare parts organized.





FAQ

1. Is the Bayonet drawer slide suitable for rental furniture that requires quick drawer installation and removal?
Yes. For rental and modular furniture that needs to be frequently assembled, disassembled, transported, or adjusted on site, the Bayonet design can reduce removal time while allowing the slides to remain attached to the cabinet.

2. Will the Bayonet connection become loose if the drawer is opened and closed frequently?
When properly installed and used within the recommended load capacity, the Bayonet connection can remain stable. The actual service life depends on factors such as usage frequency, load, installation accuracy, and regular maintenance.

3. Is this slide suitable for cabinets with an asymmetrical left and right structure?
Yes, but both sides should have sufficient mounting surfaces and clearance. For an asymmetrical cabinet design, we recommend confirming the installation method during the sample stage to ensure smooth drawer movement.
