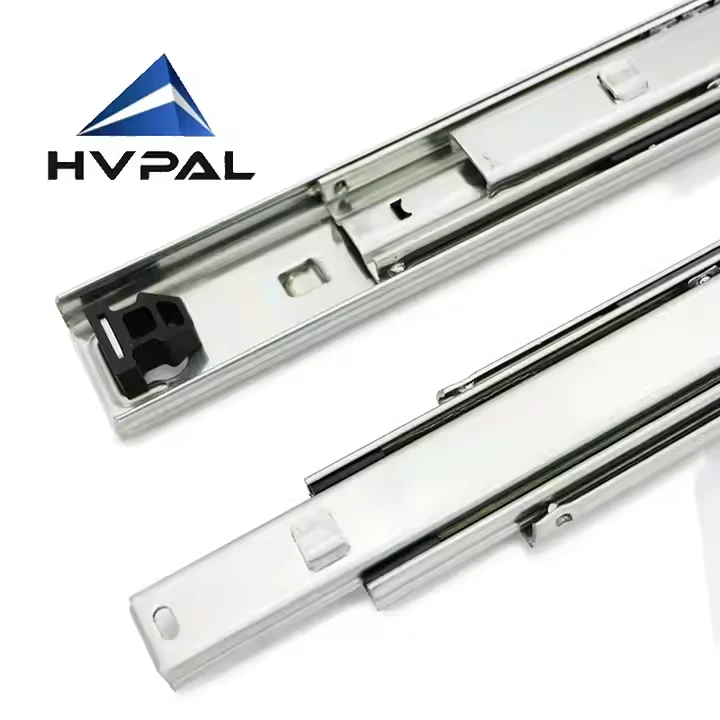

120kg Bayonet Type Drawer Slides

HA 5313 120kg Bayonet Type Drawer Slides

When a drawer needs to be removed from time to time, the way it connects to the cabinet can be just as important as how smoothly it moves. This is where a Bayonet style drawer slide can be useful. Instead of making the slide a permanent part of the drawer assembly, the Bayonet mechanism allows the drawer to be detached when needed while the slides remain mounted to the cabinet.

What makes the slide worth considering is not just one feature, but the combination. It carries heavy loads, extends fully, and still lets the drawer come out when needed. The 3 section structure is another part of what makes this slide practical. Instead of stopping partway, the drawer pulls out completely, bringing the entire interior into view.

That matters more than it might seem. In deep drawers, items tend to settle toward the back, and reaching them often means digging around blindly.

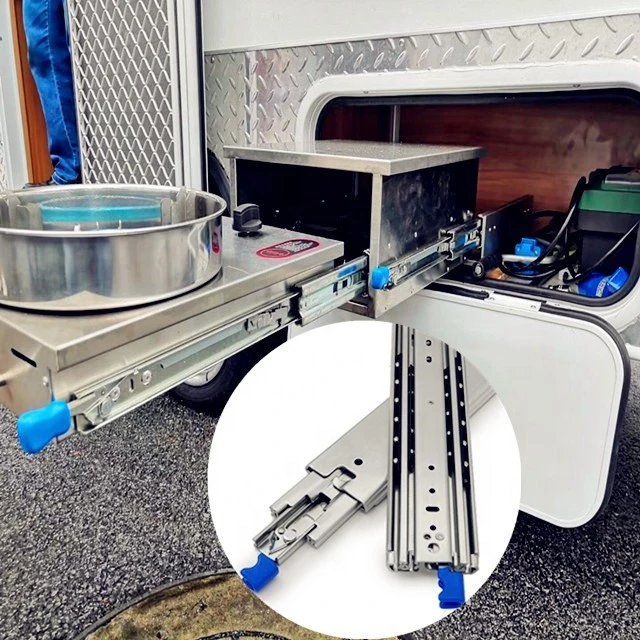

Bayonet Mounting Easy to detach the drawer while keeping the slides fixed to the cabinet.

Heavy Duty Design  Suitable for drawers carrying heavier items.

Easy Maintenance Convenient for drawer removal, cleaning, and servicing.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Cold Rolled Steel
Model Number	HA5313	Finish	Clear Zinc Electroplate
Loading capacity	115KG/450MM(18'')	Height	53mm
Length	12"-30" (305-760mm)	Application	Kitchen, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports



APPLICATIONS

Kitchen Cabinets
 The Bayonet mounting design makes the drawer easy to remove for maintenance.

Office Filing Cabinets
Used for office filing and storage drawers to hold documents, folders, and other office supplies.

 Tool Cabinets
Suitable for tool cabinet drawers used to store wrenches, power tools, hardware parts, and other heavy items.



Workshop Storage Cabinets
Provide convenient pull out storage for tools, components, and maintenance supplies.





FAQ

1. Does full extension make a big difference in daily use?

Yes, it does. Full extension allows the drawer to pull out far enough that you can see and reach items stored toward the back without having to dig around. This is especially helpful for deep drawers or tool storage.

2. What should I check before removing the drawer for the first time?

It is advisable to make sure the drawer is empty or lightened, the slide is fully extended or in the correct release position, and there is enough space in front of the cabinet to pull the drawer out smoothly.

3. What should I pay attention to when selecting this slide if the load is close to 120 kg per pair?

Make sure the load is evenly distributed, and confirm that the mounting screws and mounting surfaces are strong enough. Avoid long-term off-center loading. When operating close to the rated capacity, it is advisable to leave a certain safety margin.
