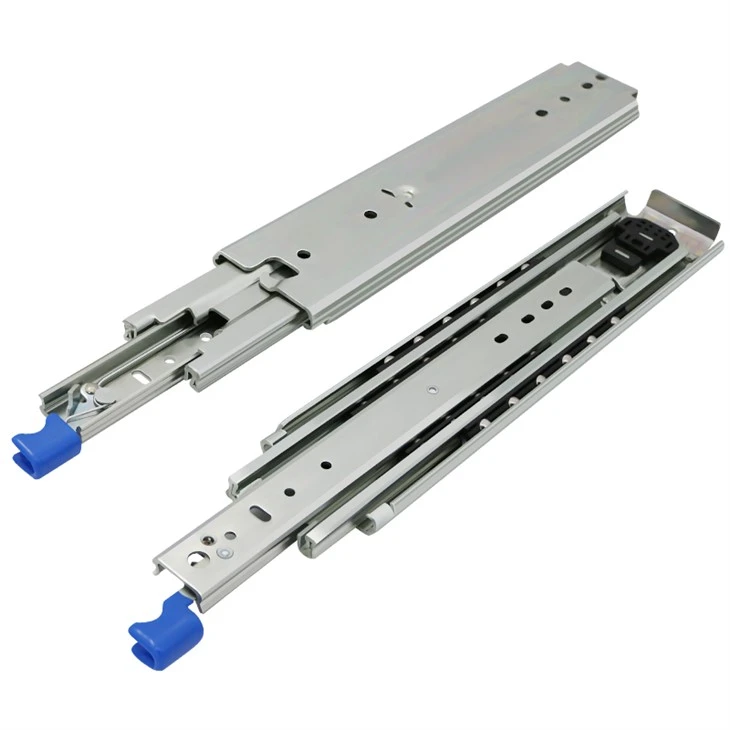

Heavy Duty Cabinet Equipment Drawer Slides

HVPAL Heavy Duty Cabinet Equipment Drawer Slides

When a drawer carries real weight, the slide becomes the structure, not just a fitting. This full extension slide is built around that idea: a cold rolled steel body with a self locking ball bearing carriage that keeps movement smooth and holds the drawer firmly in place once closed. Its profile is designed for the kind of equipment that rarely moves but must never fail when it does ,ATM cassettes, vehicle tool chests, industrial storage drawers, and large pallets. The locking mechanism matters here. In mobile or high vibration settings, a drawer that drifts open is a hazard, and this slide removes that possibility without adding complexity.

Full extension gives unobstructed access to the entire drawer, which changes how a cabinet can be loaded and serviced. Rather than a component chosen after the cabinet is designed, it works best when treated as part of the frame itself, letting the surrounding structure stay simpler and lighter. For equipment that has to open reliably for years, that is the point.

.

New locking design. You need to press the blue button to open or close the drawer. It will lock when a full extension or closed.

Cold rolled steel body offers good rigidity and resists deformation under long term load.

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.



APPLICATIONS

 Solar Equipment Storage
Can be used in pull-out storage systems for solar installation and maintenance equipment, providing a strong sliding structure for heavy loads.



 Industrial Storage Cabinets
Suitable for industrial cabinets with large drawers used to organize machinery parts, tools, molds, and maintenance equipment.



 Generator Equipment Trays
Used for pull-out trays in generator systems, allowing heavy batteries, tools, or service equipment to be accessed more easily during maintenance.

Commercial Vehicle Storage Systems
Suitable for storage compartments installed in service vehicles, allowing technicians to pull out heavy equipment and tools without removing the entire drawer.





Q35: Can you recommend a slide if I only know the drawer dimensions and load?
Yes. If you provide the drawer width and depth, approximate load, required extension, and installation method, we can help check whether HA76MM is suitable for the application.

Q30: How important is the drawer frame when using a 227 kg rated slide?
Very important. The slide is only one part of the load-bearing system. The drawer, cabinet, mounting bolts, and supporting frame must all be strong enough for the intended load.

Q30: How important is the drawer frame when using a 227 kg rated slide?
Very important. The slide is only one part of the load-bearing system. The drawer, cabinet, mounting bolts, and supporting frame must all be strong enough for the intended load.
