Automotive Toolbox Slide with Lock

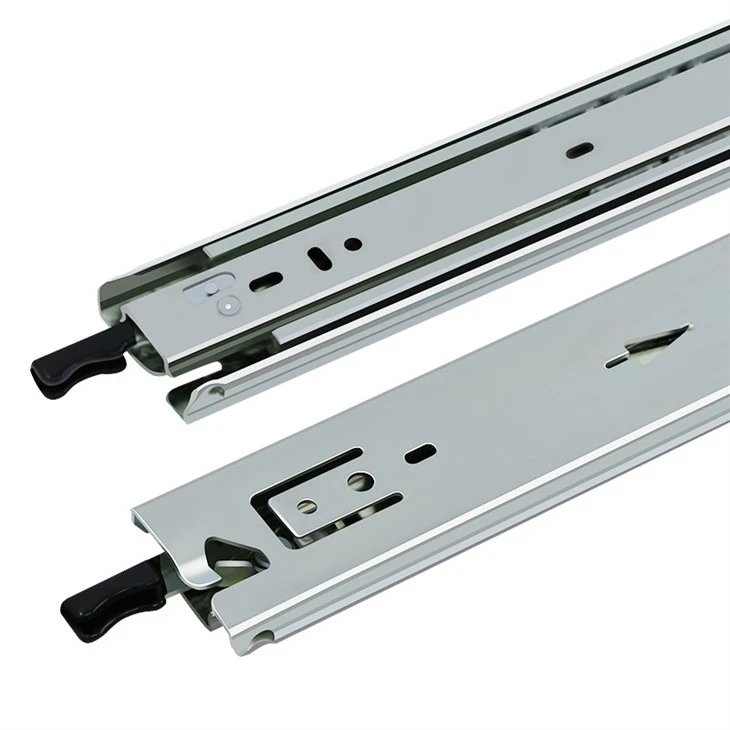

HA5133  Self-Locking Slide for Automotive Toolboxes

The HA5133 is a heavy-duty three-stage self-locking ball bearing slide engineered for demanding mobile applications. Specifically designed as a self-locking slide for automotive toolboxes, it features a unique front-tab locking mechanism that automatically secures the slide in both closed and extended positions, preventing unintended movement during transit. With a 58kg load capacity and constructed from 1.5mm cold-rolled steel with blue-zinc coating, this slide offers exceptional durability and corrosion resistance for vehicle-mounted applications.

Available in 16-26 inch (405-660mm) lengths with custom sizing options, it accommodates various toolbox configurations. The non-detachable design ensures structural integrity, while the precision ball bearing system maintains smooth operation even under full load. The locking mechanism provides added safety and stability for tools and equipment during vehicle movement.

Key Features:

Front-tab self-locking mechanism

58kg load capacity

1.5mm cold-rolled steel construction

Blue-zinc anti-corrosion finish

405-660mm length range (customizable)

Non-detachable heavy-duty design

Three-stage ball bearing system

A fresh locking system. To open or close the drawer, you must press the blue button. Whether fully extended or closed, it will lock.

Constructed from cold-rolled steel that is 1.5 mm thick. by spraying 5% salt for 48 hours

A calm workplace can result from the ball-bearing action.

The direct contact between the outside and inner channels can be lessened with a nylon buffer.

APPLICATIONS



Automotive toolboxes and service vehicles

Mobile repair equipment

Industrial storage drawers

Large pallet handling systems

Field service and maintenance units

Q1. Are you manufacturer or trading company?

We are a professional manufacturer of hardware accessories with more than 17 years of experience, and we can accept your various customization needs

Q2: Can you provide me with samples?
 Yes, we can provide you with samples to test and check the quality.

Q3: How about your delivery time?
It usually takes 25-30 days after receiving your payment.

Q4: How does your factory do in terms of quality control?
We have a professional QC team from production to packaging inspection for each item.
