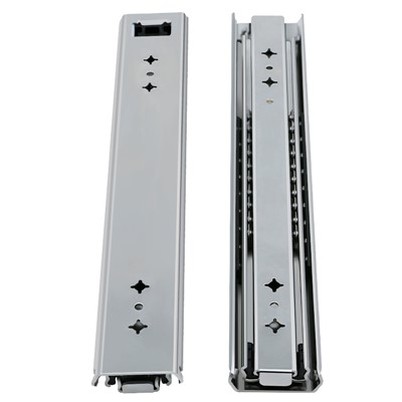

53mm Stainless Steel Slides Heavy Load

53mm Stainless Steel Heavy-Duty Drawer Slide Product Introduction

Material Features

Made of 304 stainless steel, it has excellent anti-oxidation and corrosion resistance, and is especially suitable for use in high humidity or acid-base environments. Compared with cold-rolled steel, stainless steel can maintain its surface finish for a long time without additional electroplating.

‌Load-bearing capacity

Under the same structural design (such as three-section slides, outer, middle and inner rails with a thickness of 2.0mm), stainless steel slides have higher material strength and better load-bearing performance than conventional steel slides.

‌Structural design‌
The outer rail, middle rail and inner rail are all made of 2.0mm thick steel plate, with a total thickness of 19.2mm (including installation clearance). Some high-end styles can be equipped with self-locking devices or buffer functions, and safe closure and anti-falling can be achieved through two-way locking or damping devices.

3-Fold Slides. Enable the slides to extend fully. Suitable for industrial drawers, safety drawers, exhibition drawers, and heavy truck drawers.

Constructed with 2.0 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS.

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Stainless Steel
Model Number	HA5301	Finish	Clear Zinc Electroplate
Loading capacity	125KG/450MM(18'')	Height	53mm
Length	10"-60" (250-1500mm)	Application	Kitchen, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports



APPLICATIONS

Q:Why are we your first choice?
a) we are manufacturer with good quality control and competitive price

Q:Can I get a sample for free?
We can provide free samples but you should take care the freight.

Q: What is your price terms?
Normally Ex-works, FOB Shantou and Shenzhen , CIF (cost insurance and freight) etc.

Q:Are you factory or trade company?
A:We are professional manufacturer factory of funiture hardware, for about 10 years experience
