Smooth Heavy Duty Runners For Storage Drawer

HA7613 smooth heavy duty runners for storage drawer

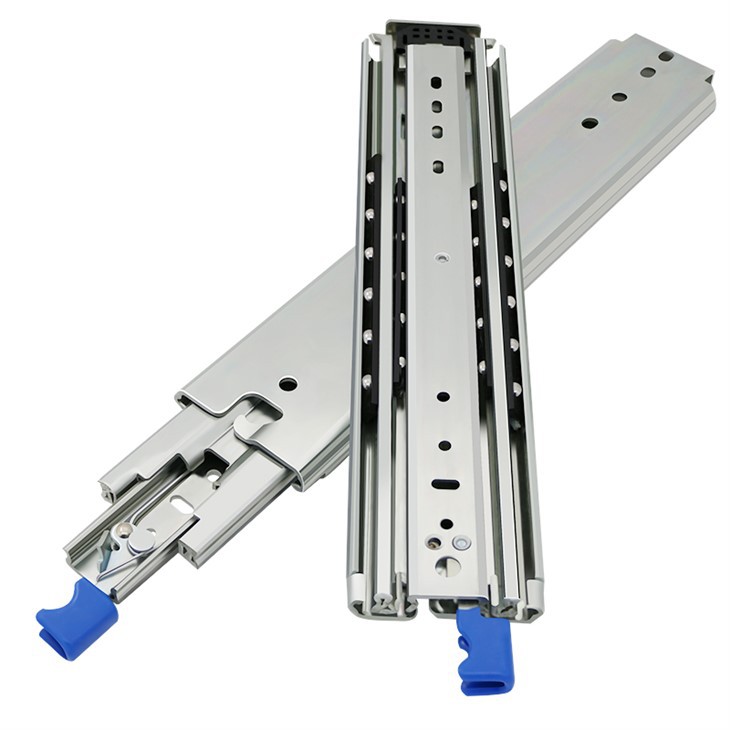

The HA76MM heavy duty locking ball bearing slide is designed for users who need smooth heavy duty runners for storage drawers in demanding environments. With precision steel ball bearings and a full-extension design, the slide moves smoothly even when carrying extremely heavy loads. Whether installed in a storage drawer, equipment cabinet, or tool chest, the drawer can be pulled out completely for easy access to the contents.

Built from high-quality cold rolled steel, the HA76MM slide supports up to 500lbs (227kg) per pair. The strong 2.52.52.5mm steel thickness provides excellent rigidity and prevents bending under heavy loads. Available in lengths from 10 to 60 inches (254mm–1524mm), it is suitable for a wide range of heavy-duty storage drawers, from compact industrial cabinets to large pull-out platforms.

New locking design. You need to press the blue button to open or close the drawer. It will lock when a full extension or closed.

Constructed with 2.5 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

230kg Heavy-Duty Industrial Locking Drawer Slides

Nylon buffer can reduce the direct contact between the outer and the inner channel.



APPLICATIONS



Q1:How long does the whole procedure being worked out ?
A1 : After you place a order , the production handling time is about 20-30days . We need 15 days to pre -pare all the stuff then 30 days for manufacturing

Q2:Are you manufacturer or trading company?
A2:We are manufacturer& trading company.We have our own factories to produce different slide rail and hinge products.

Q3:What is the payment terms acceptable ?
A3:Normally T/T is appreciated. L/C for old customers only.T/T: 30% deposit before production, balance before shipment.L/C at sight
