Over Extension Drawer Slides

HA3504 Over Extension Drawer Slides

Over extension drawer slides are engineered to allow drawers to extend beyond their nominal length, providing enhanced access to the entire drawer space. Compared to standard full-extension slides, they make it easier to reach items stored at the back, improving efficiency in both industrial and professional environments. This feature is especially valuable where precision, accessibility, and space utilization are critical.

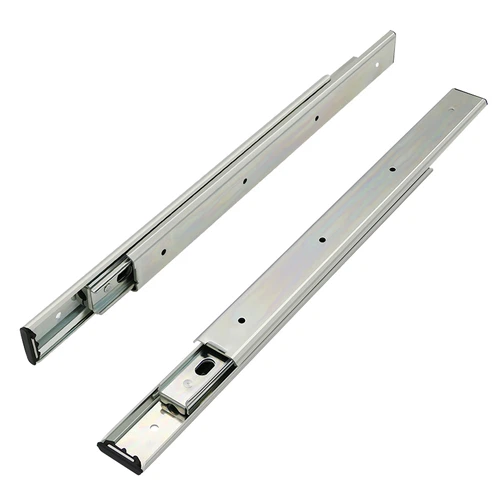

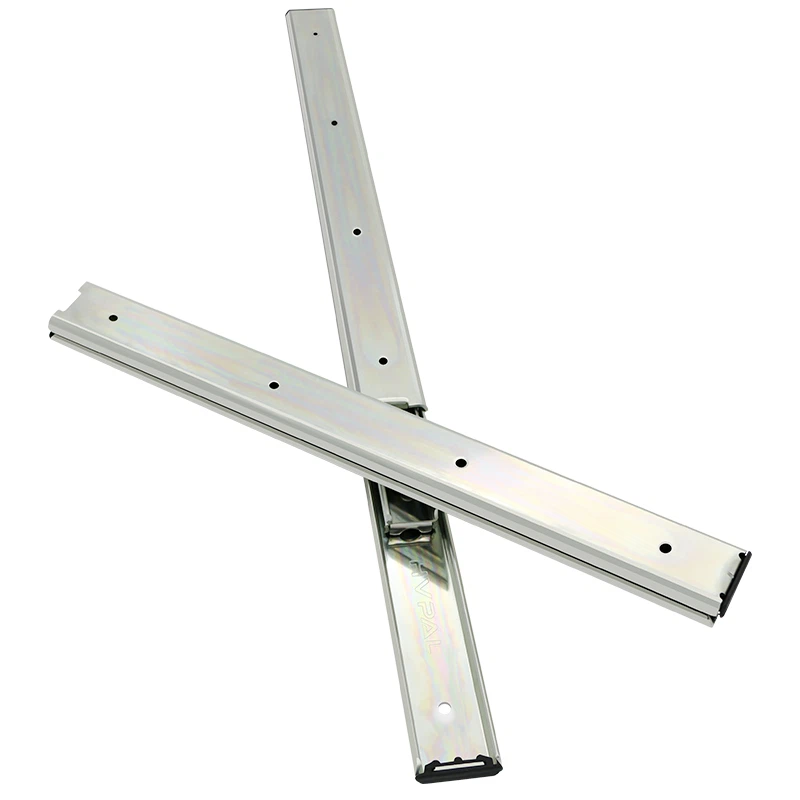

The HA3504 over extension double-layer ball bearing slide is designed to deliver reliable performance with a load capacity of 60 kg. Manufactured from high-quality cold rolled steel and featuring a 1.5*1.5 mm thickness, it ensures durability while maintaining a relatively lightweight structure. The double-layer design enhances stability and smoothness, making it suitable for frequent and consistent use.

With its advanced over extension structure, the HA3504 allows drawers to extend beyond the cabinet, ensuring full visibility and easy access to stored items. Available in sizes ranging from 12 to 28 inches (300mm–700mm), it fits a wide range of drawer dimensions. The non-detachable design adds structural integrity, reducing the risk of misalignment and ensuring long-term reliability.

This model is widely used in industrial drawers, toolbox cabinets, and medical equipment where precision and convenience are essential. Its smooth ball bearing operation, combined with stable load performance, makes it ideal for environments that require both durability and ease of use. The HA3504 over extension drawer slide is a practical solution for improving workflow efficiency and maximizing storage accessibility.

Double ball bearing system – Smooth, low-friction sliding

Constructed with 1.50 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Cold Rolled Steel
Model Number	HA3504	Finish	Clear Zinc Electroplate
Loading capacity	60KG/450MM(18'')	Height	35mm
Length	12"-28" (300-700mm)	Application	Fruniture, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports

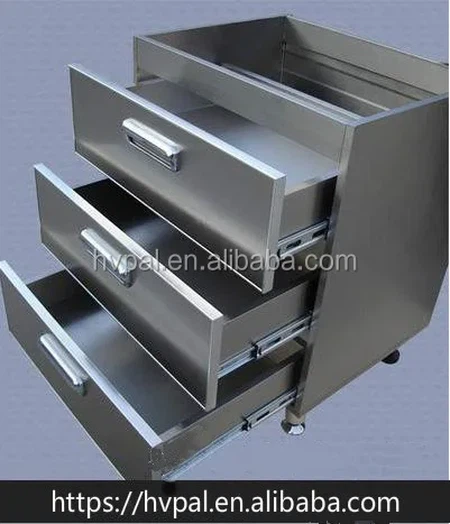

APPLICATIONS

Q1.When can I get the price?
A.We usually quote within 24 hours after we get your inquiry.lf you are very urgent to get the price, please call us.

Q2.How can I get a sample to check your quality ?

A : After price confirmation , you can require for samples to check ourquality . If you just need a blanksample to check the design and papelquallty , we will provide you sample for free , as long as you afford theexpress freight

Q3:How can I get more details about products on this website?
A1:For more information on any products featured on this website (how to set up, what the product is made from, compatibility, after-sales service, warranties and so on), please contact us.
