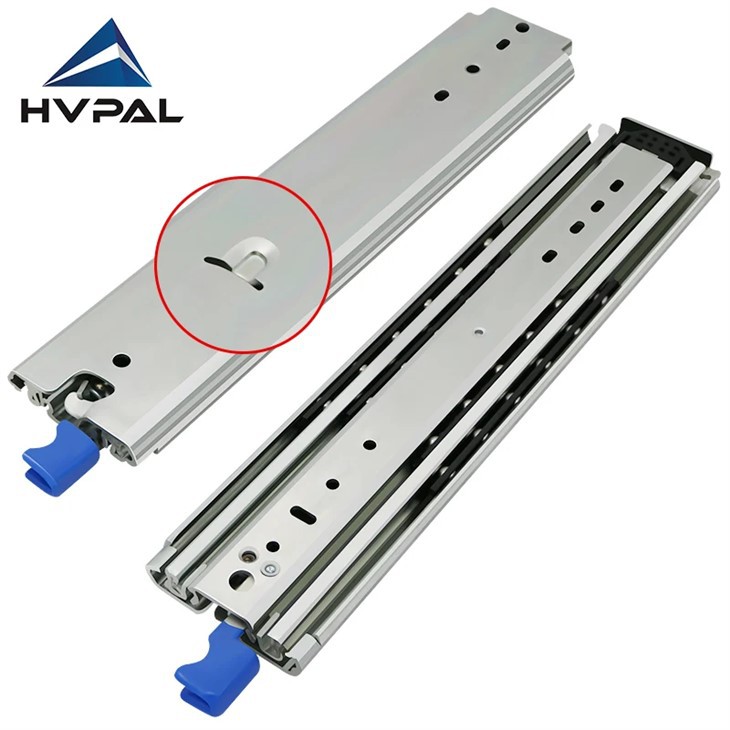

Heavy Duty 500lb Non-Disconnect Full Extension Slide Rails

HA76MM Heavy Duty 500lb Non-Disconnect Full Extension Slide Rails

The HA7603 Heavy Duty 500lb Non-Disconnect Full Extension Slide Rails are engineered for applications that require maximum strength, stability, and long-term durability. Featuring a 76mm extra-wide profile and a robust 2.5mm cold-rolled steel construction, these three-section ball bearing slides deliver a true full extension, ensuring smooth, controlled travel even under extreme loads. With a load rating of 500 lbs (227 kg) per pair, they are ideal for industrial environments where reliability is essential.

Designed with both locking and non-locking options, the HA7603 series provides enhanced safety and operational flexibility. The locking version secures the slide in the open or closed position, preventing accidental movement when the drawer is fully loaded-perfect for mobile or vibration-prone settings such as vehicle toolboxes or service trucks.

The non-disconnect structure enhances strength and ensures the rails remain securely assembled during use, making them suitable for heavy-duty storage systems, machinery drawers, and large equipment trays. Precision-machined steel ball bearings provide smooth and silent sliding, while the reinforced track design minimizes deflection under maximum load.

Available in lengths from 10 to 60 inches (254mm–1524mm), the HA7603 slide rails are versatile enough to meet the needs of various professional applications, including heavy-load workstations, industrial cabinets, bank ATM machines, and large storage drawers.

New locking design. You need to press the blue button to open or close the drawer. It will lock when a full extension or closed.

Constructed with 2.5 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.



APPLICATIONS

Q1: Can I have a sample of to check?
Sure,we can send you the samples for free,but you need to pay the freight,we can return it to you when the order is confirmed.

Q2: What is your MOQ?
A: Different products has different MOQ.If you need a quotation, please contact with us, we will check and give you a moreexact
and competitive price.


Q3.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q4: Do you offer guarantee for the products?
Yes, we offer 3-6 years warranty to our products.
