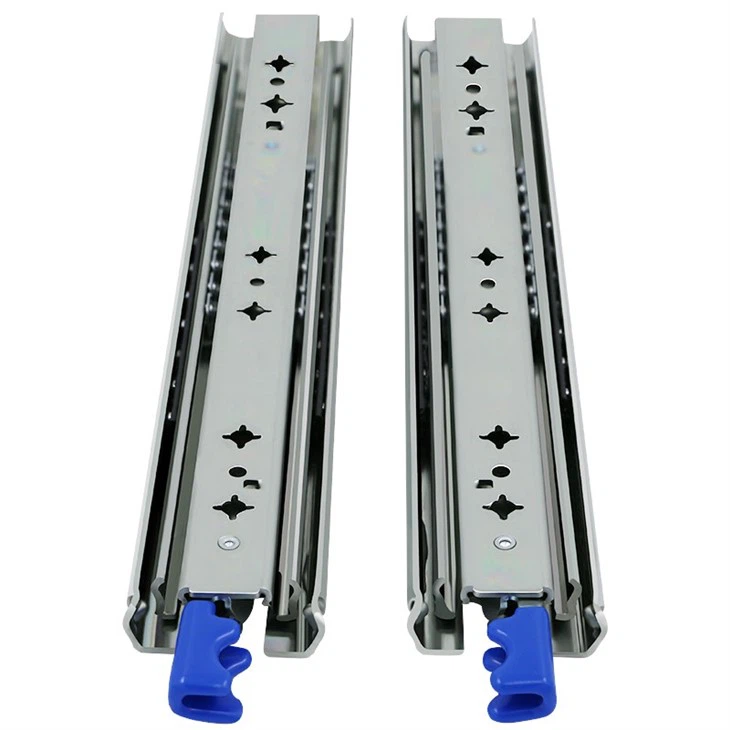

53mm Drawer Slide For Toolbox

HA5333 Heavy Duty Self-Locking Ball Bearing Slide Rail

Material‌: Cold-rolled steel (2.0mm thickness) with zinc plating or galvanized finish

‌Mechanism‌: Three-section telescopic design with precision steel ball bearings for smooth 100% extension

‌Performance Metrics‌:

‌Load Rating‌: ‌80–120 kg‌ (varies by length; up to 250 lbs confirmed for 30" models)
‌Cycle Life‌: Exceeds ‌50,000 cycles‌ under standard load conditions
‌Clearance‌: ‌19mm side-mount spacing‌ for space-efficient installations

Most of the slides are used in RV modification, industrial lathes, large machinery and other fields. The ability to fully expand makes it more popular with customers, and the design of the lock function also provides a certain degree of security for stored items.

Using top-class lever ball bearing, so that the drawer runner can move very quiety, and don't need much force.

With 2.0 mm thichness Q 235 B cold rolled steel plate, make the drawer runner can with the 115 kg weight loading.

Lock the drawer making your drawer wouldn't be opened when it's moving, more safety.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Hardened Cold Rolled Steel plate
type	HA5333	Finish	Clear Zinc Electroplate
Loading capacity	115KG/450MM(18'')	Height	53mm
Length	26inches 660.4mm	Application	Kitchen, Cabient,Industrial drawers, Outdoor, Office Building, Hospital



APPLICATIONS

Q: Are you trading company or manufacturer ?
A: We manufacture directly.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock, or it is 30-35 days if the goods are not in stock

Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample
for free charge but the shipping cost is usually covered by customers
