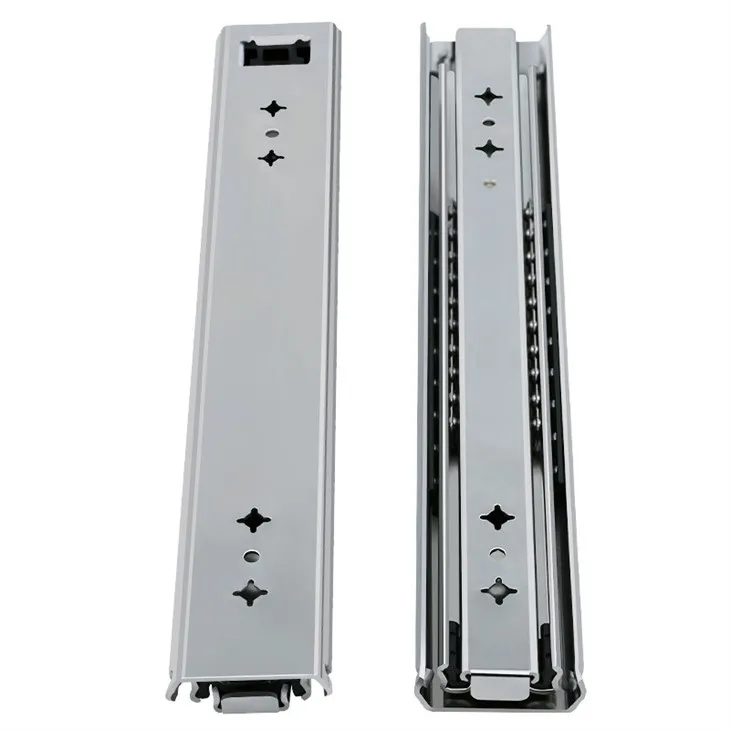

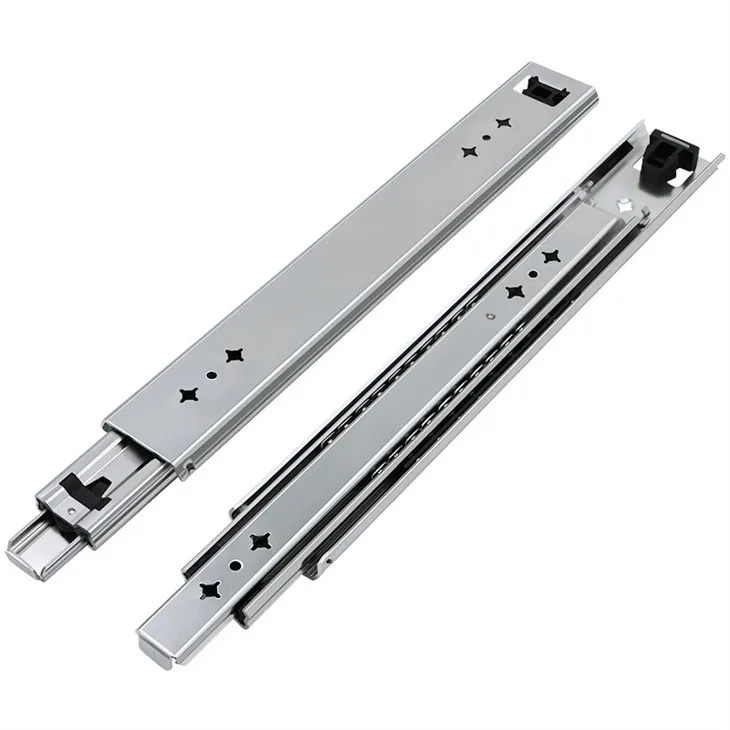

304 Stainless Steel Heavy Load Drawer Slide

304 Stainless Steel Heavy Load Drawer Slide

This 53mm wide heavy load drawer slide is fully constructed from premium SUS304 stainless steel, featuring reinforced 2.0mm thick three-section rails with precision solid steel ball bearings inside. Adopting 3-fold full extension structure, it realizes 100% complete pull-out of drawers for full access to stored heavy goods, with stable rated load up to 120kg per pair under standard 450mm length.

Different from ordinary iron galvanized slides, integral 304 stainless steel forming delivers outstanding rust-proof, anti-corrosion and oxidation resistance, perfectly adapting to humid, wet, marine and outdoor working environments without surface peeling or rust stains after long-term use. Multi-row quenched steel balls greatly reduce friction, ensuring smooth, low-noise push-pull even under full load; the whole set passes over 100,000 opening-closing fatigue tests without deformation, sagging or jamming during frequent heavy-duty use.

Precision ball bearing mechanism ensures full-extension glide with low noise, even under maximum load.

Constructed with 2.0 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Cold Rolled Steel
Model Number	HA5301	Finish	Clear Zinc Electroplate
Loading capacity	125KG/450MM(18'')	Height	53mm
Length	12"-40" (300-1000mm)	Application	Kitchen, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports



APPLICATIONS

RV Camper Van Tool Box

Truck drawer storage slide rails

RV & Truck Mobile Storage

Automobile storage drawer

Q1: Can you provide me with samples?
 Yes, we can provide you with samples to test and check the quality.

Q2: How about your delivery time?
 It usually takes 25-30 days after receiving your payment.
