115KG Heavy Duty Self-Locking Drawer Slides

HA5333 Heavy-Duty 3-Section Self-Locking Ball Bearing Slides

Engineered for demanding applications, these 3-section slides deliver reliable performance with a 115kg/pair load rating. Their innovative front-spring mechanism provides automatic locking in both extended and closed positions, ensuring secure operation.

The unit's 2.0mm cold-rolled steel construction, enhanced by zinc-blue surface treatment, offers exceptional durability in harsh environments. Available in standard 400-650mm lengths with customization options, these permanently assembled runners maintain consistent performance under continuous heavy use.

Key Features:
✔ 115kg dynamic load capacity
✔ Self-locking via front spring mechanism
✔ 2.0mm thick cold-rolled steel
✔ Zinc-blue anti-rust surface
✔ Industrial-grade for harsh environments

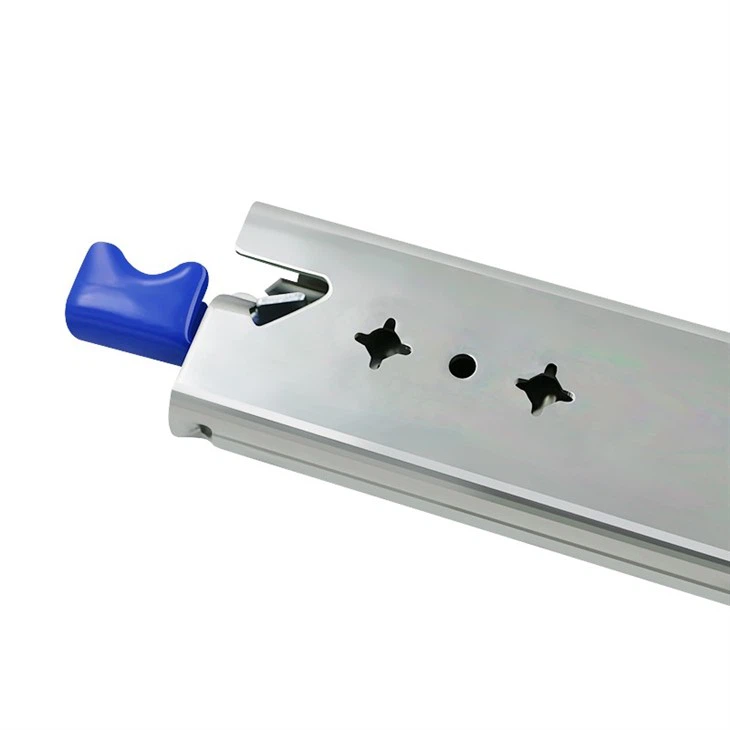

A fresh locking system. To open or close the drawer, you must press the blue button. Whether fully extended or closed, it will lock.

Constructed with 2.0 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.



APPLICATIONS

✓ Industrial workbenches - secure tool storage
✓ Mechanic tool chests - smooth heavy-load operation
✓ Warehouse racking systems - durable pallet slides
✓ Factory equipment - corrosion-resistant performance

RFQ

Q: Can you mount ball bearing drawer slides from the bottom?

A: While not as common as side-mounted, another type of ball bearing drawer slides is bottom-mounted. Bottom-mounted ball bearing drawer slides look like their side-mounted counterparts. They consist of a pair of rails.

Q: How do ball bearing drawer slides work?

A: These units consist of small balls that can alongside the tracks set up for the drawers to move. The ball bearings prevent the drawers from coming in direct contact and rubbing against the piece of furniture installed. The intermediate components of the pair of ball bearings.

Q: Do you measure ball bearing drawer slides open or closed?

A: Lift the front of the drawer slightly to clear the stop, and then continue pulling to remove it from the cabinet. Measure Slide Length: Measure the entire length of the drawer opening from the back to the front edge.
