1000mm Outdoor Heavy Duty Drawer Slide

1000mm outdoor Heavy Duty Drawer Slide

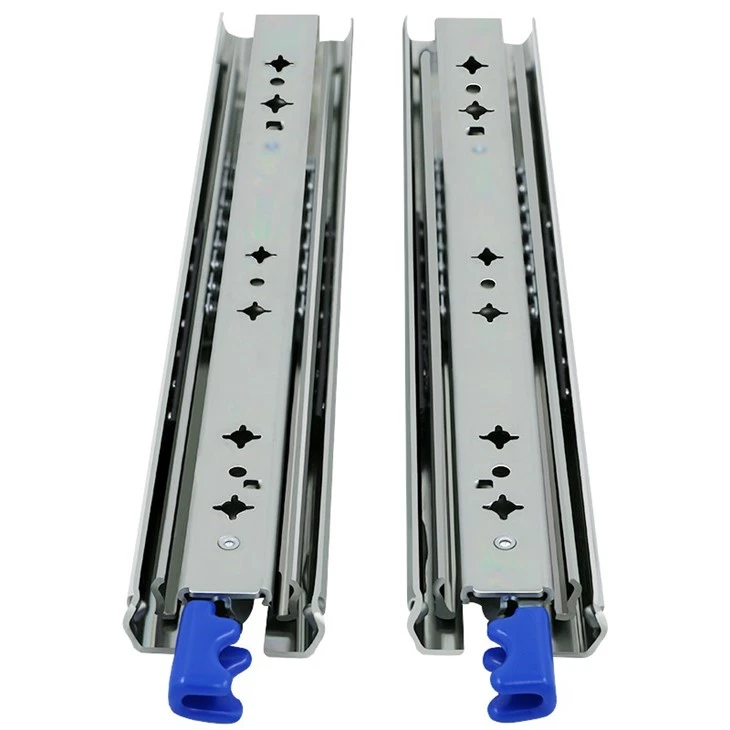

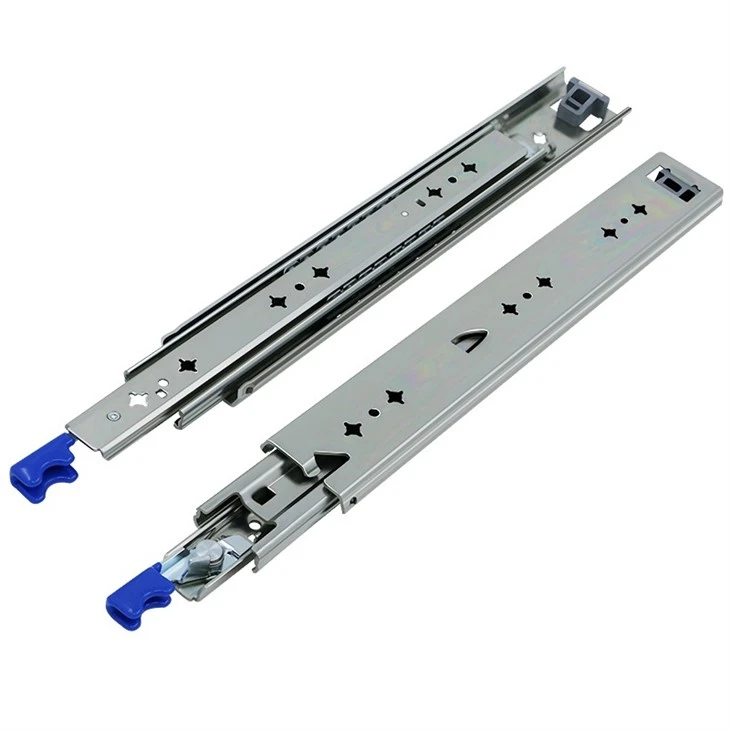

This outdoor heavy-duty drawer slide rail, 1000mm in length and 53mm in width, adopts a three-section telescopic ball-bearing design. It is specifically made for medium to heavy-duty long drawers and is widely applicable to outdoor cabinets, camper storage, and pickup truck toolboxes, etc. Its standard 53mm optimized width design ensures excellent load-bearing capacity while maintaining a compact installation space. Compared to the 76mm wide slide rail, it has a more favorable price advantage. If you have moderate load requirements, choosing this slide rail offers extremely high value for money.
The slide rail is made of thick cold-rolled steel and its surface is treated with black electroplating or blue zinc anti-rust coating. It has passed the salt spray test and can effectively resist moisture, rain, dust, as well as drastic outdoor temperature changes, adapting to all-weather outdoor installation environments. It is equipped with a steel ball bearing assembly. The 1000mm full telescopic design allows the entire drawer to be fully extended, without any dead space, and enables easy access to items deep in the cabinet.

Using top-class lever ball bearing, so that the drawer runner can move very quiety, and don't need much force.

With 2.0 mm thichness Q 235 B cold rolled steel plate, make the drawer runner can with the 115 kg weight loading.

Lock the drawer making your drawer wouldn't be opened when it's moving, more safety.



Brand Name	HVPAL	Material	Hardened Cold Rolled Steel plate
type	HA5333	Finish	Clear Zinc Electroplate
Loading capacity	115KG/450MM(18'')	Height	53mm
Length	24 inches 609.6mm	Application	Kitchen, Cabient,Industrial drawers, Outdoor, Office Building, Hospital



APPLICATIONS

Outdoor camping vehicle

Field repair vehicle storage

RV outdoor kitchen cabinets

camper van standard storage

The 53mm-wide heavy-duty drawer slides offer the following key advantages:

1. High Load Capacity

Made of 2.0mm high-strength cold-rolled steel or industrial-grade stainless steel, they maintain stability even when fully loaded, making them suitable for heavy-duty applications such as RVs and industrial equipment.

2. Stability and Durability

3. Versatile Functionality

Lockable Design: Automatic locking prevents accidental sliding, making it suitable for vibrating environments (such as RVs and mobile equipment). Select models feature silent closing.

Damping Cushioning: Hydraulic dampers and dual springs achieve automatic silent closing, reducing impact noise.

Three-Section Full Extension: The 53mm-wide track allows for full drawer extension, making it easy to access items in confined spaces and increasing drawer utilization by 40%.

4. Compatibility and Easy Installation

The 19mm maximum edge design saves space, making it ideal for compact storage scenarios like underbeds.

5. Cost-Effectiveness
Compared to 76mm wide slides (with a load capacity of 200kg+), 53mm wide slides with a load capacity of 150kg are more cost-effective and suitable for medium-sized warehouses, equipment drawers, and other applications.
