60kg Double Stacked Drawer Slides

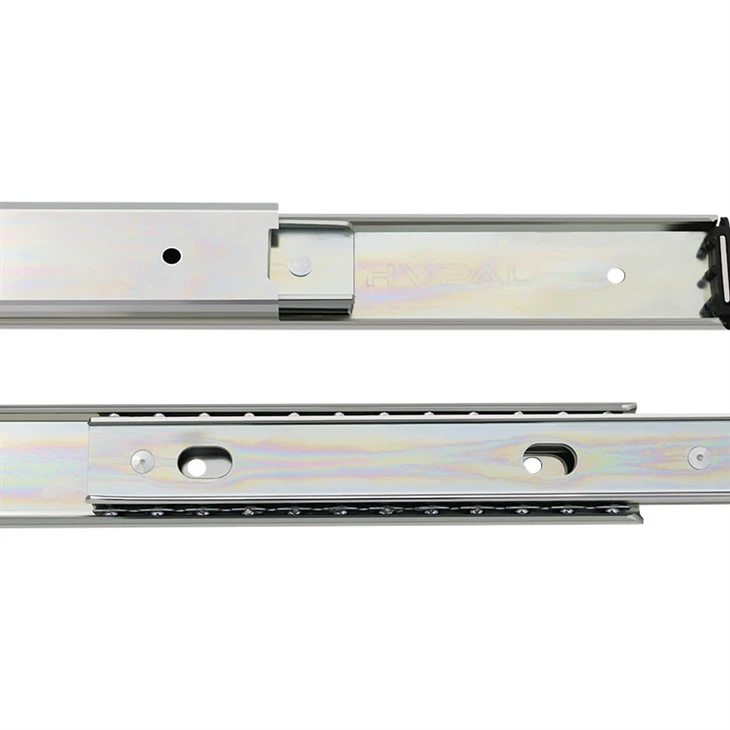

HA3504 60kg double stacked drawer slides

In some industrial drawers, the problem is not the drawer size, but how much of the contents can actually be reached. Items placed at the back are often difficult to see or remove, especially when the drawer is deep. The slide is designed for applications where a longer pull out distance can make daily use more convenient.

Its double stacked structure allows the drawer to travel farther outward, giving users better access to tools, parts, and equipment stored inside. The ball bearing design provides smooth movement during regular opening and closing, while the fixed, non detachable construction is suitable for industrial drawers and equipment where a stable slide structure is preferred. It can be used in tool cabinets, maintenance workstations, medical equipment, and other storage systems where space needs to be used efficiently.

Double-Stacked Design Provides longer travel in a compact structure.

Extended Travel Pulls the drawer farther out for easier access.

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Cold Rolled Steel
Model Number	HA3504	Finish	Clear Zinc Electroplate
Loading capacity	60KG/450MM(18'')	Height	35mm
Length	12"-28" (300-700mm)	Application	Fruniture, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports



APPLICATIONS

 Industrial Tool Cabinets
Suitable for industrial tool cabinet drawers, providing extended travel for easier access to tools stored inside.



 Tool Boxes
Suitable for large tool boxes and mobile tool cabinets, making tools stored in deep drawers easier to reach.



Medical Equipment
Can be used in medical equipment drawers for organizing medical tools, supplies, and equipment accessories.





Industrial Equipment Cabinets
Suitable for storage drawers in industrial equipment cabinets, providing convenient access to maintenance tools and spare parts.

Q1: What is the advantage of the over-travel design?

A: The main advantage is that the drawer can be pulled farther out than with a standard slide. This gives users better access to items stored toward the back, which is especially useful for deep industrial drawers, tool cabinets, and equipment storage.

Q2: Does the stacked structure require any special installation?

A: No special installation method is required. However, it is important to keep the slides on both sides at the same height and properly aligned during installation. Correct alignment helps the drawer move more smoothly and reduces unnecessary resistance during use.

Q3: Is the extended travel helpful when the drawer is installed inside a cabinet?

A: Yes. The extended travel allows more of the drawer to come outside the cabinet, making the contents easier to see and reach. This can be particularly useful when the drawer is deep or when frequently used items are stored toward the rear.
