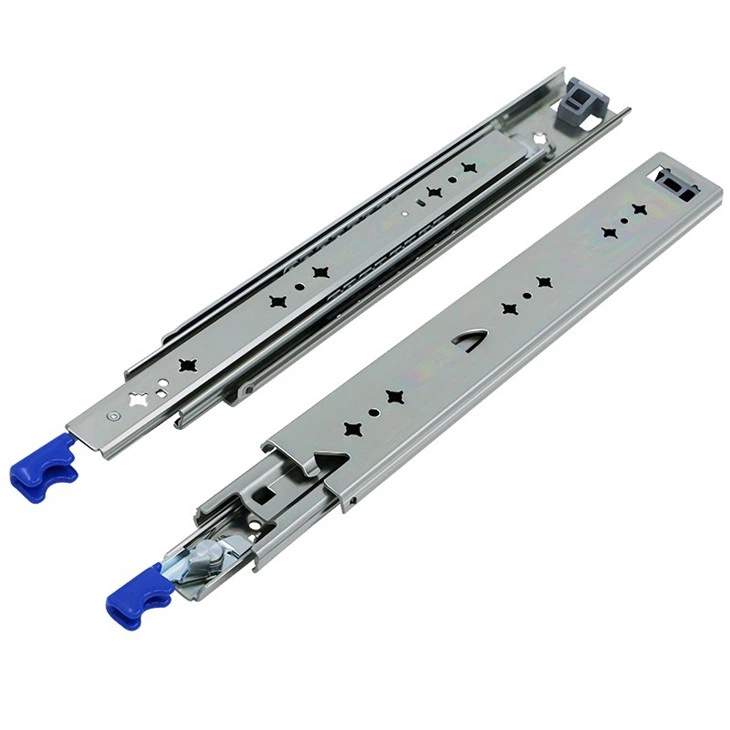

3 Section Full Extension Heavy Duty Drawer Slide

HA5333-3 section full extension heavy duty drawer slide

This slide rail is one of the best-selling products of our company. Let me introduce it next. First of all, it is a slide rail with three sections that can be fully extended. Then we use 2.0MM thick cold-rolled steel plate as the raw material. It increases its load-bearing capacity and durability. In addition, we designed a locking device, which can prevent the goods from slipping out when the vehicle is bumpy, effectively reducing product loss and preventing the drawer from falling out when the drawer is tilted. This slide rail can bear a maximum load of 115KG, which meets people's storage needs to a great extent. It is the best choice for RV modification, industrial machinery and other fields.

Using top-class lever ball bearing, so that the drawer runner can move very quiety, and don't need much force.

With 2.0 mm thichness Q 235 B cold rolled steel plate, make the drawer runner can with the 115 kg weight loading.

Lock the drawer making your drawer wouldn't be opened when it's moving, more safety.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Hardened Cold Rolled Steel plate
type	HA5333	Finish	Clear Zinc Electroplate
Loading capacity	115KG/450MM(18'')	Height	53mm
Length	22 inches 558.8mm	Application	Kitchen, Cabient,Industrial drawers, Outdoor, Office Building, Hospital



APPLICATIONS

FAQ

Q1:Are you factory or trade company?
A:We are professional manufacturer factory of funiture hardware, for about 10 years experience

Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but the shipping cost
is usually covered by customers.

Q: Can you make products with my logo? What is your MOQ?
Yes, we can do OEM and the MOQ is 40000 PCS.
