Three Types of Clip-On Drawer Slides

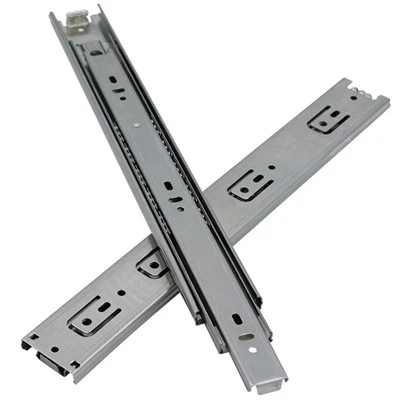

What is a Clip-on Drawer Slide?

A clip-on drawer slide is a type of ball-bearing slide that uses a quick-release clip mechanism to connect the drawer and cabinet members. Instead of relying on multiple screws for installation, the clip-on design allows drawers to be easily attached or detached with a simple push or release motion. This provides a secure connection, ensures smooth drawer movement, and significantly reduces assembly time.

The clip-on mechanism is particularly valued in modern furniture manufacturing and industrial assembly, where efficiency, accuracy, and maintainability are important. It helps save labor, simplifies packaging and shipping, and allows users to quickly remove drawers for maintenance or cleaning without the need for tools.

Mounting	Side mount
Loading rate	120 kgs/ pair 18 inch
Max width	30 inch
Traveling	100% full extension
Install spalce	3/4 inch each side
Inner connection	Non-disconnected
Finish	Clear Zinic
Size available	10 in, 12 in, 14 in, 16 in, 18 in....30 inch

Why Use Clip-on Drawer Slides?

Clip-on slides are ideal for applications that require both high performance and convenience.
They are preferred because:

They make installation and removal faster and easier.

They ensure reliable drawer alignment and stability.

They reduce maintenance costs and improve assembly efficiency.

They can support a wide range of load requirements - from furniture drawers to heavy industrial storage units.

For factories or workshops producing furniture or tool cabinets in volume, clip-on slides offer standardized installation and shorter production cycles, helping improve overall manufacturing productivity.



How to Choose the Right Clip-on Drawer Slide

When selecting a clip-on slide, several factors should be considered:

Load Capacity – Determine the total weight the drawer must support. For household use, slides with a 45–60kg rating are sufficient. For industrial or heavy-duty drawers, 100kg or more is recommended.

Material Thickness – Heavier loads require thicker cold-rolled steel (e.g., 2.0mm) for better durability and stability.

Slide Length – Choose the appropriate length (12–30 inches) depending on drawer depth and required full-extension distance.

Surface Finish – Zinc-plated or black-coated surfaces offer corrosion resistance and enhance appearance.

Mounting Type – Clip-on or hook-in structures can be selected based on whether you need easy removal or stronger fixed support.



Applications of Clip-on Drawer Slides

Clip-on drawer slides are widely used in kitchen cabinets, office filing systems, furniture drawers, industrial workstations, tool cabinets, and large equipment trays.
They are suitable for both residential and industrial environments where drawers must open smoothly, bear significant loads, and be easily detached for maintenance or inspection.

Three Types of Clip-on Drawer Slides

1. HA4513 – Light-Duty Clip-on Ball Bearing Slide

Load Capacity: 45kg per pair

Length Range: 12–22 inches (300–550mm)

Material Thickness: 1.21.21.4mm cold-rolled steel

Structure: 3-section design with clip-on mounting

Applications: Kitchen cabinets, office filing cabinets, and furniture drawers.
Features: The HA4513 offers a balance of compact design and reliable performance. It is lightweight, easy to install, and provides stable movement - an ideal choice for furniture and office drawers that require frequent access and smooth operation.



2. HA5113 – Heavy-Duty Clip-on Ball Bearing Slide

Load Capacity: 58kg per pair

Length Range: 12–26 inches (300–650mm), special lengths customizable

Material Thickness: 1.51.51.5mm cold-rolled steel

Structure: Heavy-duty design, available in separable and non-separable types

Applications: Furniture, industrial drawers, tool cabinets, and large trays.
Features: The HA5113 provides higher load capacity and flexibility. Its detachable design allows for easier assembly and cleaning, while its heavy-duty construction ensures long-term durability. This model is especially suitable for medium to heavy-duty drawers requiring both strength and flexibility.



3. HA5313 – Super Heavy-Duty Clip-on Ball Bearing Slide

Load Capacity: 120kg per pair

Length Range: 12–30 inches (305–760mm), customizable

Material Thickness: 2.02.02.0mm cold-rolled steel

Structure: 3-section full-extension slide with clip-on mounting

Applications: Industrial drawers, office storage, heavy furniture, and tool cabinets.
Features: The HA5313 is built for high load-bearing and long service life. Its robust construction and smooth movement make it ideal for demanding industrial environments. It supports large drawers or trays that require strength, precision, and safety under full load.
