Heavy Duty Drawer Runners 700mm

HA5103 Heavy Duty Drawer Runners 700mm

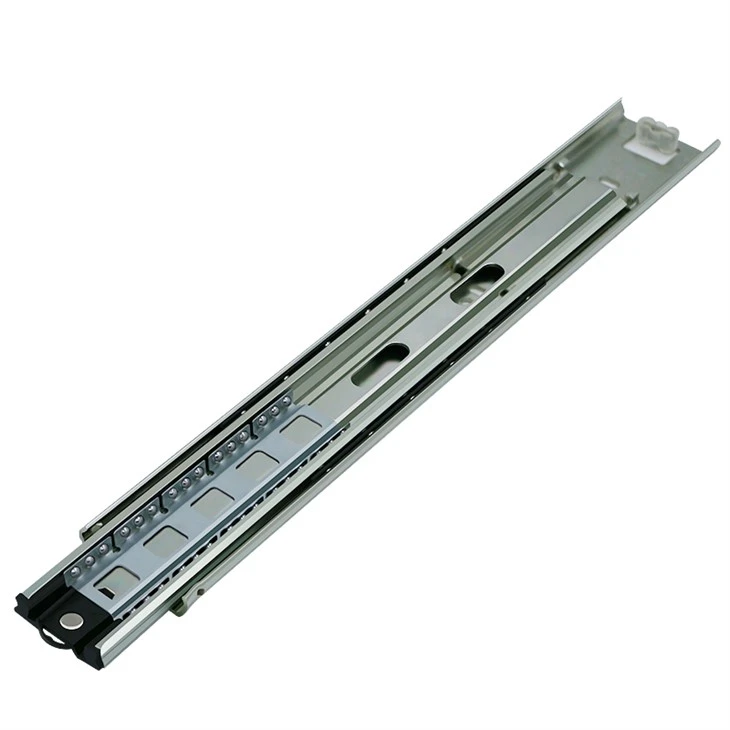

The HA5103 Three Section Full Extension Heavy Duty Ball Bearing Drawer Slide is a robust and reliable solution designed for demanding applications. Crafted from high quality cold rolled steel with a material thickness of 1.5mm, these slides ensure exceptional durability and strength. With a load capacity of 60kg per pair, they are ideal for heavy-duty use in furniture, industrial cabinets, and specialized storage systems. Available in lengths ranging from 10 to 28 inches (250mm to 700mm), the HA5103 offers full extension functionality, allowing complete access to drawer contents. Its optional clip-on design simplifies installation, making it a versatile choice for both professional and DIY projects.

Available with an optional clip on structure for convenient assembly and disassembly.

Constructed from 1.5 mm thick cold rolled steel and tested with a 5% salt spray solution for 48 hours.

The ball bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.

Brand Name	HVPAL	Material	Cold Rolled Steel
Model Number	HA5103	Finish	Clear Zinc Electroplate
Loading capacity	60KG/450MM(18'')	Height	51mm
Length	10"-28" (250-700mm)	Application	Furniture, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports



APPLICATIONS

Furniture Cabinets
The full-extension structure provides easier access to items stored at the back of the drawer.

Industrial Equipment Drawers
The 1.5 mm steel construction provides stable support during repeated opening and closing.

Tool Cabinets
The ball-bearing system allows loaded tool drawers to move smoothly with less friction.

Workshop Storage Systems
The 60 kg load capacity makes the slides suitable for storing tools, components, and maintenance equipment.





Q1: Should the slides be installed as a matched pair?
A: Yes. The stated load capacity is based on one pair installed on both sides of the drawer. The two slides should be mounted at the same height and kept parallel.

Q2: Does the slide length affect its load capacity?
A: Yes. Longer slides generally have a lower practical load capacity because the extended structure creates more leverage. Please confirm the drawer size and actual load before selection.

Q3: Can this slide be mounted underneath the drawer?
A: Side mounting is recommended. Horizontal or bottom mounting will significantly reduce the load capacity and may affect movement stability.
