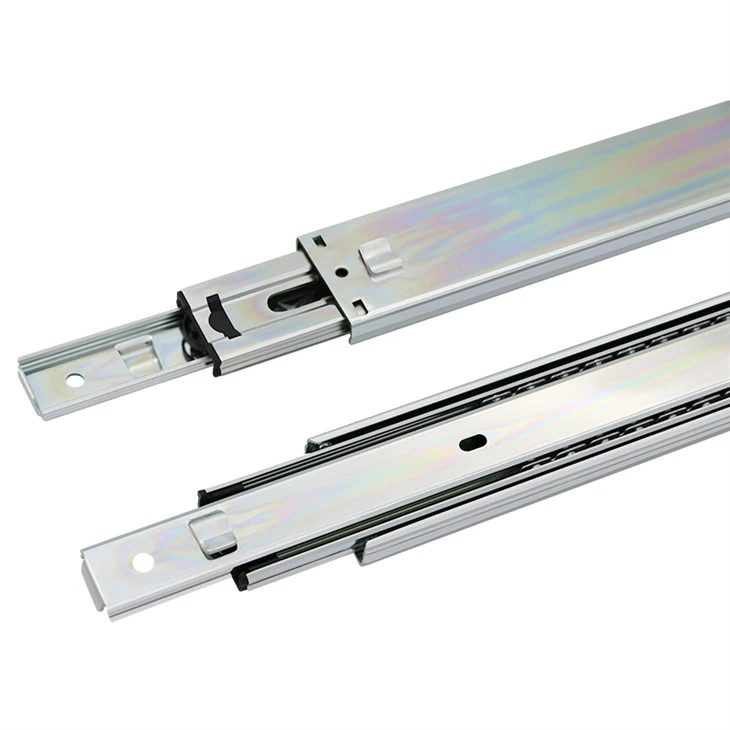

Ball Bearing Bayonet Drawer Slides

HA4513 Ball Bearing Bayonet Drawer Slides

When furniture makers and interior designers talk about drawers, the conversation often turns to how easily the slides go in and how smoothly the drawer moves day after day. Installation time, long term reliability, and the simple act of opening and closing all matter more than most people realize.

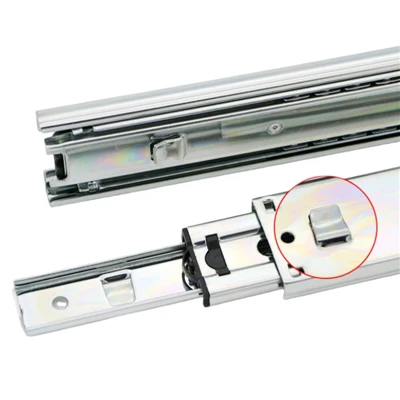

This bayonet slide was developed with exactly those everyday concerns in mind. Instead of relying on complicated fixing methods, it uses a bayonet-style mounting system that lets installers position and secure the slide quickly.

In workshops and production lines, small savings in time add up. A mounting system that reduces fiddling with screws or alignment jigs means more units can be finished in a shift. At the same time, the people who eventually use the furniture notice the difference in how the drawer feels: steady, predictable, and free of unnecessary resistance.



Reinforced steel construction with high grade ball bearings ensures smooth operation under full load





Brand Name	HVPAL	Material	Cold Rolled Steel
Model Number	HA4513	Finish	Clear Zinc Electroplate/electrophoresis black
Loading capacity	45KG/450MM(18'')	Height	45mm
Length	12"-22" (300-550mm)	Application	Kitchen, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports



APPLICATIONS

Computer Desks Used in desk drawers for storing keyboards, stationery, and small office items.





 Bathroom Vanities Suitable for vanity drawers used to organize toiletries and daily essentials.

 TV Cabinets Provide sliding support for drawers used to store remote controls, cables, and accessories.





Bedside Tables Suitable for compact drawers used to store books, glasses, and personal items.

Q1: Is cold rolled steel suitable for long term use?
A: Yes. Cold rolled steel is durable and suitable for regular use, helping the slides maintain reliable performance through repeated opening and closing.

Q2: How does the 1.2 × 1.2 × 1.4 mm plate thickness affect performance?
A: The different thicknesses of the three slide sections help balance structural strength and overall weight. This design supports stable movement during use while providing a practical structure for everyday drawer applications.

Q3: How does the 3 section design improve accessibility?
A: The 3 section structure allows the drawer to extend farther outward, making it easier to reach items stored at the back. This is particularly useful for deeper cabinets, office filing systems, and other storage spaces where convenient access is important.
