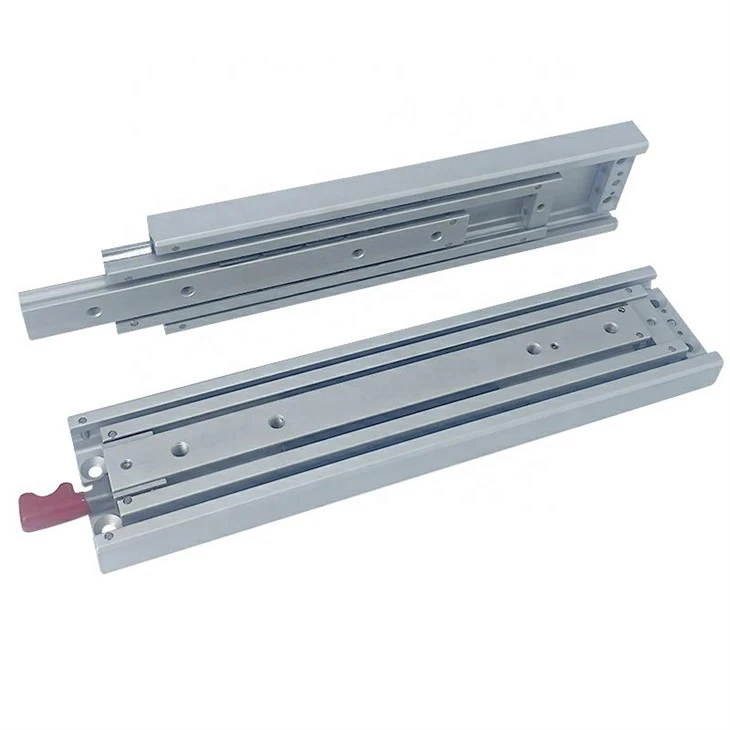

Aluminum Telescopic Rail System
Brand Name： HVPAL
Material： Cold Rolled Steel
Model Number： HA5333
Finish： Clear Zinc Electroplate
Loading capacity： 125KG/450MM(18'')
Height： 53mm
Length： 12"-60" （300-1500mm）
Application： Kitchen, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports
Description
HA80 Aluminum Telescopic Rail System
In many industrial applications, a sliding system is used repeatedly and often works in areas where space, weight, and operating conditions need to be considered at the same time. Equipment doors, storage compartments, service trays, and pull-out platforms all need controlled and reliable movement during daily use.

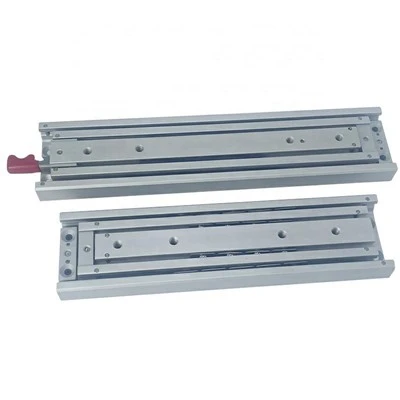

This aluminum telescopic slide is designed for applications where smooth extension and stable support are important. Its side mount structure allows the slide to be integrated into different types of equipment without taking up unnecessary space. The 3 section design provides a practical solution when a longer travel distance is required.
The aluminum construction also offers a good balance between strength and weight, making it suitable for mobile equipment and installations where overall weight matters. The surface treatment helps the slide cope with moisture and general exposure during operation, while the internal rolling system is designed for repeated opening and closing.
Secure Locking Mechanism Automatic position lock during movement
Constructed with 3.50 mm thick cold-rolled steel for strength and durability.
The ball-bearing action can create a quiet environment at work.
Nylon buffer can reduce the direct contact between the outer and the inner channel.
|
Brand Name |
HVPAL |
Material |
Aluminum Alloy |
|
Model Number |
HA80 |
Finish |
Clear Zinc Electroplate |
|
Loading capacity |
500KG/450MM(18'') |
Height |
80mm |
|
Length |
12"-60" (254-1524mm) |
Application |
Fruniture, Industrial drawers, Outdoor, Office Building, Hospital, Mall, Sports |
APPLICATIONS
Ideal for retractable machine components, maintenance trays and equipment compartments, providing convenient access for inspection, servicing and repairs.
Suitable for toolboxes, pull out storage drawers and equipment trays in commercial trucks and mobile service vehicles, helping organize tools and improve accessibility.
Used in generator enclosures and power equipment cabinets for sliding maintenance trays and storage compartments, making equipment inspection and servicing more convenient.
Suitable for retractable equipment shelves and sliding trays in industrial electrical cabinets, allowing easier access to electrical components during maintenance.
Q1: Will the Grease Freeze at -30°C?
A: Standard grease becomes thicker at low temperatures, which may increase the operating force. For applications down to around -40°C, we can provide a low-temperature synthetic grease option. For existing slides, the original grease can be cleaned and replaced with low-temperature grease.
Q2: Can the Slides Work in High-Dust Environments?
A: Heavy dust can affect the smooth operation of ball-bearing slides. For applications such as mines and cement plants, we recommend slides with dust-wiping seals to help reduce dust entering the track. A self-lubricating plastic retainer can also reduce the need for grease. For very dusty conditions, roller-type slides can be considered as an alternative.
Q3: Can the Surface Treatment Resist Mild Acids and Alkalis?
A: Standard anodized aluminum has some resistance to mild alkaline solutions, but performance depends on the concentration and exposure time. For applications involving acidic or alkaline cleaning solutions, a harder anodized finish with sealing treatment can be considered. A protective cover can also help reduce direct contact with corrosive liquids
