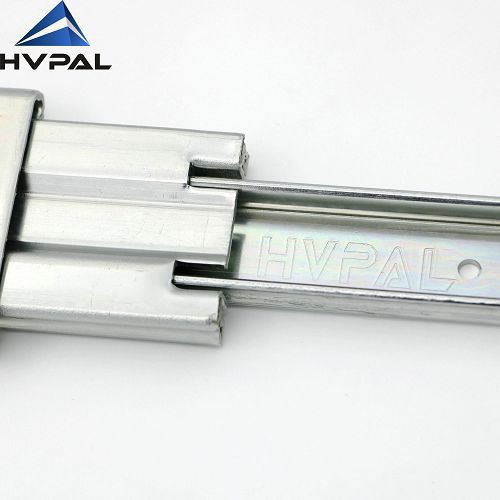

76MM Heavy Duty Drawer Slide

HA7603 76MM heavy duty drawer slide

76mm Heavy-Duty Drawer Slide Core Parameters and Features
Basic Specifications

Model: 7603 Three-Section Full-Extension Ball Bearing Slide,76MM heavy duty drawer slide
Length Range: 12" to 80" (304.8mm-2032mm), compatible with a variety of drawer sizes
Side Clearance: 19.2 ± 0.3mm, ensuring precise assembly
Load Capacity: Single Track Load: 227kg (500 lbs)/457mm (18")

Material: Cold-rolled steel body with blue zinc plating/black finish, 48-hour salt spray resistance
Durability: Tested for 80,000 cycles, meeting high-frequency industrial use requirements
Functional Design
Full-Extension Travel: Drawers can be fully extended for easy access

Lockable Models: Select models have an integrated latch to prevent accidental drawer sliding

3-Fold Slides. Enable the slides to extend fully.

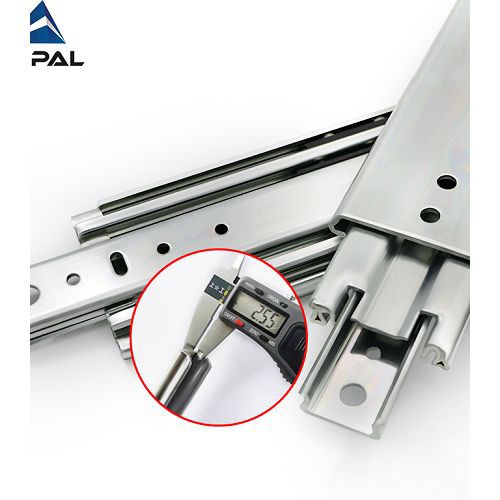

Constructed with 2.5 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

Rubber pads reduce damage caused by violent collisions



APPLICATIONS

1.Why are we your first choice?
a) we are manufacturer with good quality control / Excellent raw materials and production technology
b) competitive price
c) good services
d) on time delivery

2. Can I put my logo on the products?

Yes. When a certain quantity is reached, the logo can be customized for free, if the quantity is not enough, a part of the fee will be charged.

3. What payment item do we support?

T/T, L/C, D/P, D/A, Money Gram, Pay Pal, Western Union, Cash, Escrow
