227KG Locking Drawer Slides

227KG Locking Drawer Slides

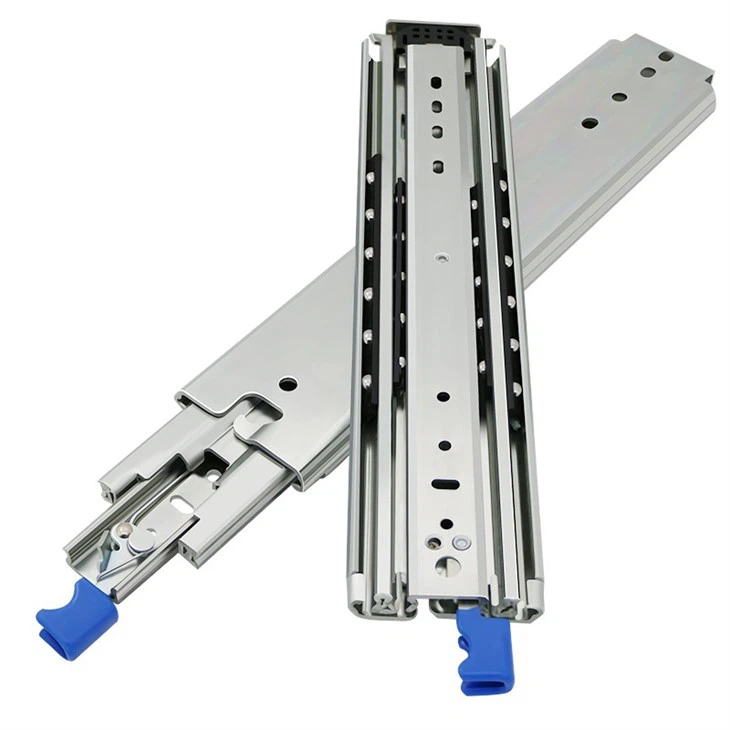

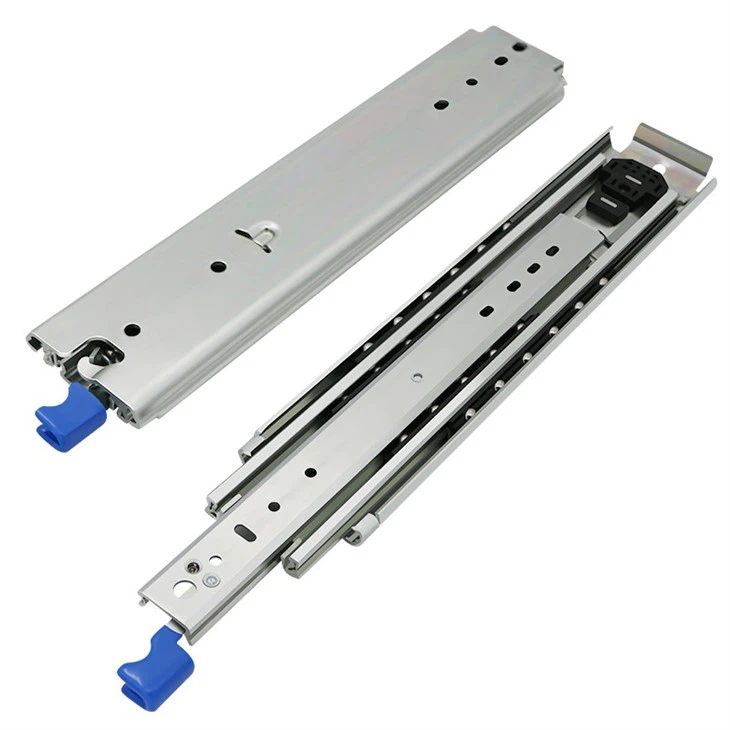

This is a heavy-duty slide rail, model HA7613, which is a hot-selling product of our company and is loved by many RV remodelers.
This slide rail is made of high-quality cold-rolled steel plate, which greatly improves the durability of the slide rail. The galvanized surface is also more corrosion-resistant, and there is no need to worry about being eroded by rain, which extends the service life of the slide rail.
The thickness of the steel plate is 2.5mm. This design can ensure the load-bearing capacity of the slide rail and meet the customer's storage weight requirements.
The lock design is the feature of this product. The lock function design increases the safety of the items and can also avoid damage caused by bumpy road conditions.

The details of the HA7613 slide rail are as follows,
-- Load rating: 227kg/pair(18")450mm
-- Extension: 100% full time extension
-- Material: hardened cold rolled steel
--Feature: with lock function
-- Width: 76 mm
-- Steel plate thickness: 2.5*2.5*2.5mm

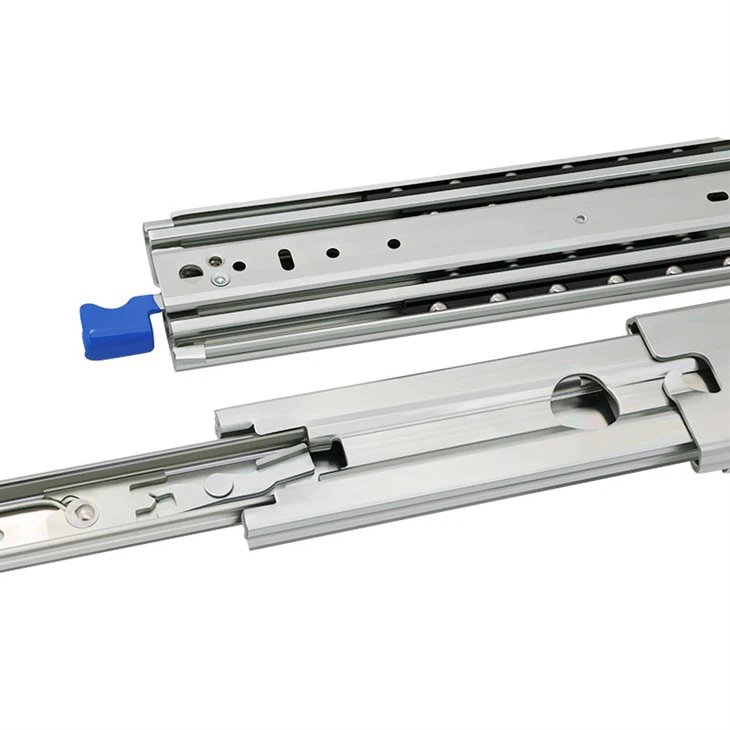

New locking design. You need to press the blue button to open or close the drawer. It will lock when a full extension or closed.

Constructed with 2.5 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.



APPLICATIONS

 227KG Locking Drawer Slides

 steel heavy duty drawer slide for marine cabinet

ball bearing drawer slide 200kg for camper van

 heavy duty drawer slides with safety lock

Q: How does the 3 section design improve accessibility?
A: The 3 section structure allows the drawer to extend farther outward, making it easier to reach items stored at the back. This is particularly useful for deeper cabinets, office filing systems, and other storage spaces where convenient access is important.

Q:What is the function of a lock?

A: Lock-in & lock-out available. It locks when drawer is fully closed OR fully extended. Prevents accidental sliding under vibration, perfect for RV, camper, fire truck and mobile equipment.

Q: Is cold rolled steel suitable for long term use?
A: Yes. Cold rolled steel is durable and suitable for regular use, helping the slides maintain reliable performance through repeated opening and closing.
