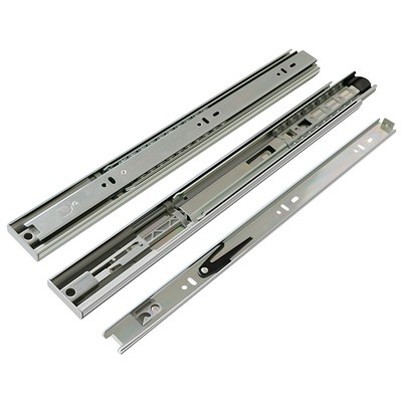

51mm heavy duty drawer slide

51mm wide heavy-duty slide rail is one of the mainstream specifications of industrial-grade thickened three-section steel ball slide rails. It belongs to the medium-heavy load category, lying between ordinary furniture slide rails and 76mm ultra-heavy-duty slide rails; the common industry name is: 51mm wide heavy-duty three-section slide rail, 51mm industrial drawer slide rail. It is the most commonly used specification in foreign trade, tool cabinets, filing cabinets, and equipment cabinets.
Core Specification Parameters
Width: Standard outer width 51mm
Structure: Three-section fully extended, 100% fully open, the drawer can be fully pulled to the bottom
Plate thickness
Regular model: Plate thickness 1.2mm / 1.5mm
Common length (industry standard length, mm)
300, 350, 400, 450, 500, 550, 600, 700, 800, 900, 1000, 1200, 1500mm
Load-bearing capacity: 20 - 68KG



Function selection

Standard self-moving model (basic model)
No cushioning, no self-locking mechanism. Smooth pushing and pulling. Simple structure and the lowest price. Suitable for industrial ordinary tool cabinets and warehouse storage cabinets.



Lock-equipped / Self-locking model
Equipped with a mechanical lock mechanism. Pulling out locks the drawer, closing it locks it as well. This prevents the drawer from sliding out automatically when being moved or transported. Suitable for vehicle cabinets, campers, generator cabinet, and mobile equipment boxes.



Damping Buffer Model (Hydraulic Self-Closing)
The closing end is equipped with hydraulic buffering, which is silent and self-closing, hand-free, impact-resistant, and does not make a loud noise when closing. It is suitable for high-end tool cabinets, medical equipment cabinets, camper drawers, and high-end office filing cabinets.







53mm heavy duty drawer slide

53mm heavy-duty three-section steel ball slide rail is a mainstream model for heavy-duty industrial use, falling between 51mm and 76mm; industry names: 53-wide heavy-duty slide rail, 53mm industrial drawer slide rail, 53mm three-section full pull slide rail.
Core basic parameters
1. Standard width: Outer width 53mm
2. Structural form: Three-section fully extended, the drawer can be fully pulled out, making it easy to take items
3. Plate thickness: 2.0*2.0*2.0mm
4. Common standard lengths (mm)
300, 350, 400, 450, 500, 550, 600, 700, 800, 900, 1000, 1200, 1500
Suitable for shallow drawers to ultra-deep industrial cabinets.
5. Load-bearing capacity (pair static load)
120KG/pair (18inch)
When fully loaded, the drawer does not sag, does not shake, and does not deform, suitable for long-term heavy-duty use.
Materials and surface treatment
Regular model uses cold-rolled steel galvanizing process, which can effectively prevent rust and extend the service life of the slide rail
High-end anti-corrosion model: 304 stainless steel 53mm slide rail, moisture-proof, rust-proof, salt spray-resistant, suitable for outdoor, ships, seaside, and humid workshops



Functional Styles
1. Standard Model
No cushioning, no self-locking, simple structure, affordable price, smooth sliding; applicable to: ordinary tool cabinets, warehouse storage cabinets, simple industrial cabinets.
2. Hydraulic Damping Buffer Model
End automatically buffered, slow closing, impact prevention, hand protection, silent closing; applicable to: high-end tool cabinets, medical equipment cabinets, office steel cabinets, caravan drawers.
3. Lockable Self-locking Model
Equipped with mechanical locking device, the drawer can be locked when closed and locked when pulled out; prevents the drawer from sliding on movement, transportation, or driving; applicable to: vehicle cabinets, generator cabinet, mobile shelter, caravan, ship equipment cabinet.





76mm heavy duty drawer slide



Basic Information: The standard external width is 76mm, featuring a three-section fully retractable structure. The regular plate thickness is 2.5mm, and the standard length covers 400-1500mm, suitable for different depths of heavy-duty cabinets. The installation method is mainly based on industry-standard side mounting, and custom bottom mounting models are also available. The hole positions are standardized, facilitating direct installation and replacement. The applicable temperature range is -20℃ to 80℃, capable of adapting to most industrial indoor and outdoor environments.

Material: The main body is made of 2.5mm thickened SPCC cold-rolled steel plate, with outstanding rigidity and strong bending resistance. The high-end anti-corrosion model uses 304/316L stainless steel, which can withstand damp and salt spray environments. The sliding parts use high-carbon steel double-row/triple-row steel balls, combined with wear-resistant engineering plastics as retainers, and the surface can be treated with galvanization, black electroplating, or nickel plating, providing rust prevention and scratch resistance.

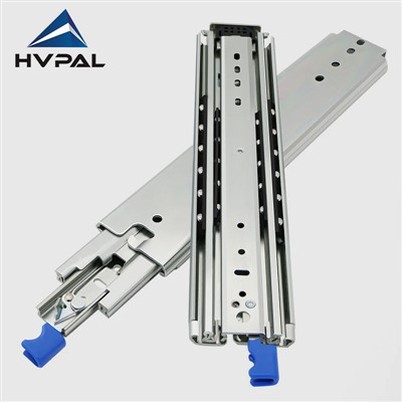

Load-bearing Capacity: The static load of each pair can reach 180-230kg. Custom thickened models can exceed 500kg. During full-load pulling, there is no sagging, no shaking, and no deformation, and it can long-term withstand heavy objects such as heavy molds, large tools, and equipment components.

Function: The core feature is the three-section fully retractable design. The drawer can be fully opened 100%, facilitating the storage and retrieval of deep heavy objects. It supports multi-style function customization, including hydraulic damping buffering (silent closing, hand-free), mechanical locking (double locking for pulling out/closing, preventing accidental sliding), quick disassembly and assembly (one-click removal of the drawer, facilitating maintenance and cleaning), and some custom models can be adapted to ultra-deep cabinets.

Advantages: The rigidity exceeds 51mm and 53mm specifications, with extremely strong lateral stability. Even long-length drawers do not shake. The closed-track design prevents dust and debris, suitable for harsh industrial environments. It is wear-resistant and durable, with a long service life, meeting the requirements of high-frequency heavy-load pulling. The hole positions comply with industrial standards, suitable for various heavy-duty cabinets, and have strong versatility.

Application Scenarios: It is mainly used for ultra-heavy industrial equipment, including large mold cabinets, server cabinets, heavy-duty tool vehicles, industrial storage cabinets; it is also suitable for extreme heavy-load scenarios such as shield machine tooling, aviation equipment accessory cabinets, ship heavy-duty storage drawers, and large medical equipment cabinets. It is the preferred sliding rail specification for industrial heavy-duty drawers.
