Industrial-grade heavy-duty metal drawer slides

Industrial-grade heavy-duty metal drawer slides



Heavy-duty metal drawer slides are precision transmission components specially designed for high-load, high-frequency, and harsh environment scenarios. Their core function is to connect the cabinet body with the drawer / module, enabling smooth pulling of heavy loads, precise positioning, and safe locking. They are indispensable core hardware components in industrial equipment, commercial cabinets, special equipment, and other fields.



The core characteristics and structural design of heavy-duty metal drawer slides

Heavy-duty metal drawer slides are specially designed for high-load-bearing scenarios. Their core advantages lie in their outstanding load-bearing capacity and operational stability. The main structure adopts a three-section layered design, consisting of fixed rails, middle rails and movable rails. The movable parts are fixed through channel-shaped or curved rails to ensure smooth pushing and pulling and uniform load distribution. This design enables the drawer to be fully pulled out, enhancing space utilization. It is particularly suitable for industrial or household environments where heavy objects need to be frequently accessed and retrieved. The key performance indicators include tensile strength tests and cycle durability, ensuring stability during long-term use.

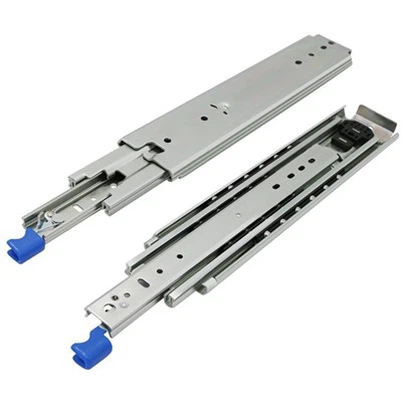

The 76mm heavy-duty metal drawer slide rail is an industrial-grade load-bearing hardware component, specially designed for high-load scenarios. The following are its core features:

High load-bearing capacity and structure

Rated load ‌ : 220-230 kg, made of cold-rolled steel plate (2.5mm thick) and double-row solid steel ball structure to ensure bending strength.

Low deformation ‌ : under a long-term load of 200 kilograms, the deformation is only 0.08mm, making it suitable for precision equipment.

2. Functional classification

Unlocked standard model ‌ : built-in damping buffer device, push-pull noise ≤20 decibels, supports over 100,000 cycles.

Lockable safety model ‌ : equipped with fully closed/fully open locking device, suitable for medical equipment, mobile tool cabinets, etc.

3. Size and Fit

Specification range ‌ : 10 inches (254mm) to 80 inches (2032mm), customization up to 4-meter extra-long specifications is supported.

Typical applications ‌ : industrial robotic arms, warehousing systems, special vehicles, ATM machines, etc.

4. Surface treatment and durability

Coating process ‌ : blue zinc plating or blue sealing treatment, anti-rust and wear-resistant, suitable for humid and high-temperature environments.

Lifespan ‌ : Certified by SGS, it remains smooth after 80,000 pulls.



Applicable scenarios
• Industrial sector: Machine tool toolboxes, industrial cabinets, robot seventh axis, heavy-duty tool vehicles, UPS battery cabinets, automated production line equipment;
• Commercial and special: RV modification cabinets, ship equipment drawers, medical heavy-duty carts, outdoor communication base stations, large storage shelves;
• Others: Large laboratory instrument cabinets, fire-fighting equipment cabinets, military equipment compartments.
Selection and installation key points
1. Determine the material (cold-rolled steel / 304 / 316) and whether to have a lock or damping based on the cabinet depth, load weight, usage frequency, and environmental corrosion grade;
2. Installation method: Side-mounted is the main option (the most common), and some models support bottom installation; the hole positions are standardized, resulting in high installation efficiency;
3. Install in pairs to ensure that the left and right parallelism error is ≤ 0.5mm, avoiding load imbalance that causes jamming and shortened lifespan;
4. In humid / coastal / chemical environments, stainless steel or electroless nickel plating must be selected. Ordinary galvanized models must not be used for long-term outdoor use.





Superior load-bearing capacity, breaking through the heavy-load limit
This is the most core advantage of the 76mm slide rail. With the 76mm widened rail design, combined with the thickened cold-rolled steel material and the three-rail reinforcement structure, the rated load-bearing capacity of a single slide rail can reach 220-230kg, which is nearly twice that of the conventional 53mm slide rail. Whether it is heavy equipment, large-capacity battery packs, large tools or precision instruments, it can stably bear the load and operate under full load with minimal track deformation. There will be no drawer sinking or jamming, and it can meet various heavy-load access requirements.
Stable structure, smooth operation without shaking
Widened rail + thickened plates: The rail width is significantly increased, combined with 2.5-3.0mm thick cold-rolled steel material, the bending and torsion resistance strength is significantly improved. Even when in full load use, the track can remain straight, the drawer opens and closes without left-right shaking or front-back deviation, improving the safety and stability of use and item storage.
Precise ball system: The internal structure is equipped with double-row / triple-row solid quenched steel balls in a circulating structure, with a larger rolling contact surface and more uniform force distribution. During the pushing and pulling process, the force is dispersed, the operation is smooth and smooth, and there will be no jamming or crawling phenomenon. The opening and closing experience and load-bearing stability are both guaranteed.



Extremely long durability, suitable for high-frequency and strict use
High-quality 76mm slide rails have undergone professional fatigue tests and can support more than 100,000 push-pull cycles, far exceeding the service life of ordinary furniture slide rails. At the same time, its core components (locking mechanism, steel balls, track) adopt wear-resistant alloys and quenching processes, with low friction coefficient and slow wear rate. In industrial and commercial high-frequency use scenarios, it maintains smooth performance for a long time, significantly reduces replacement costs, and is suitable for equipment and cabinets that operate 24/7.



Lockable slides use mechanical snaps to lock closed and extended, preventing accidental sliding. For example, RV slides automatically lock during bumpy driving, eliminating the need to manually secure the worktop when cooking.



The three-section rail allows for full drawer extension, enabling access to deep items in confined spaces and improving space utilization by 40%. For example, the 1.5-meter-wide slide rail supports full travel, making it suitable for large cabinet maintenance.

Made of galvanized steel, anti-oxidation coating, or stainless steel, these rails have passed salt spray testing and boast twice the corrosion resistance of standard rails, making them suitable for use in extreme environments such as humid and high temperatures.

Industrial-grade rails offer a lifespan of over 10 years, significantly reducing maintenance costs.
