HVPAL 53mm width 800mm heavy duty drawer slide for RV use

HVPAL 53mm width 800mm heavy duty drawer slide for RV use

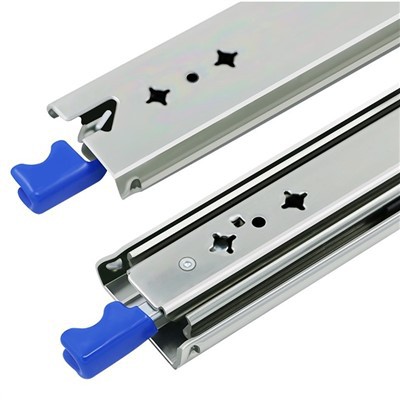

In outdoor storage and equipment applications, durability, load-bearing capacity, and weather resistance are the core requirements for hardware components. The 800mm heavy-duty drawer slide with a 53mm width is specially engineered to meet the harsh conditions of outdoor use, integrating robust structure, smooth operation, and long-lasting performance to solve the pain points of unstable and easy-to-damage drawer slides in outdoor scenarios. 53mm heavy duty drawer slide with lock function
Measuring 800mm in full extension length and 53mm in width, this heavy-duty drawer slide strikes a perfect balance between space utilization and load-bearing capacity. The 53mm width design, compared with narrower slides, significantly enhances the overall stability and load-bearing performance-its outer, middle, and inner rails are all made of 2.0mm thick cold-rolled steel, ensuring that the slide can bear heavy loads without bending or deformation even in long-term use. The 800mm full extension length allows the drawer to be fully pulled out, providing easy access to all items stored inside, which is particularly practical for deep outdoor storage cabinets, toolboxes, and RV drawers.

As an outdoor-specific heavy-duty slide, its weather resistance is comprehensively upgraded to cope with rain, sun, humidity, and temperature changes. The surface is treated with galvanizing technology, which can pass 48-hour salt spray tests, effectively preventing rust, corrosion, and oxidation caused by outdoor moisture and dust. For more harsh marine or coastal outdoor environments, optional 304 stainless steel material is available to further enhance corrosion resistance, ensuring the slide remains smooth and functional even after long-term exposure to the elements.

In terms of structural design, this slide adopts a three-section full extension structure with double-row steel ball bearings, which not only ensures ultra-smooth sliding without jamming but also reduces noise during opening and closing, avoiding disturbance in outdoor living or working spaces. It is equipped with a lock-in and lock-out function-when the drawer is fully closed or opened, it can be automatically locked, preventing accidental sliding caused by outdoor vibration, such as the of RVs or utility trucks, thus protecting the safety of stored items.

The load-bearing capacity of this slide reaches up to 120-227kg, meeting the needs of storing heavy outdoor equipment, such as power tools, camping gear, marine supplies, and industrial accessories. It has passed more than 50,000 opening and closing cycle tests, ensuring long-term reliable use without wear or failure, which greatly reduces the maintenance cost of outdoor storage equipment.

Installation is simple and convenient with a side-mount design, and all necessary mounting accessories are included, suitable for both professional installers and DIY enthusiasts. Its 19mm installation gap is compatible with most outdoor cabinets and drawers, making it widely applicable to RVs, truck bed storage, outdoor tool sheds, marine cabinets, and industrial outdoor equipment.

In summary, the 800mm heavy-duty drawer slide with a 53mm width is a high-performance hardware product tailored for outdoor use. It combines thickened steel structure, excellent weather resistance, strong load-bearing capacity, and smooth operation, solving the practical problems of outdoor drawer use. Whether for personal outdoor camping, RV modification, or industrial outdoor storage, it can provide stable and reliable support, becoming an indispensable core component for outdoor storage systems. heavy duty drawer slide 53 mm metal slide rail

How to choose a 53mm wide heavy-duty metal drawer slide and what factors should be considered?

First, let's look at the load-bearing capacity. Calculate the total weight of the drawer when it is fully filled with items, and multiply it by 1.5 as a safety margin to avoid damage to the slide rails due to long-term overloading. For a 53mm wide slide rail, the regular load-bearing capacity is between 100 and 150 kilograms. If it is used for industrial equipment, campers, or heavier storage drawers, it is recommended to choose an ultra-heavy model with a load-bearing capacity of 150 kilograms or more to ensure stable and non-collapsed use.
Secondly, pay attention to the material and surface treatment. For indoor dry environments, cold-rolled steel can be used, with surface treatment of galvanization or electroplating black. This has a high cost-performance ratio. If it is in a humid, coastal, or environment with corrosive gases, 304 stainless steel should be chosen, which has better corrosion resistance. At the same time, check if the surface of the slide rail is smooth without burrs, and the coating is uniform to avoid poor-quality materials that are prone to rust and deformation.
Then, consider the structure and function selection. If you need the drawer to be fully pulled out for easy access or maintenance, choose a three-section rail structure; if it is used in scenarios where the drawer needs to be prevented from sliding out accidentally, select a slide rail with locking function, so that the drawer will not slide randomly after locking; if you pursue quietness and usage experience, you can choose a slide rail with damping buffer function, which can close slowly and smoothly when closed, reducing noise and impact.
Next, consider the installation compatibility. Choose side-mounted slide rails first, as they are more stable in installation. Make sure the spacing of the slide rail holes complies with the installation requirements of your cabinet and drawer, and ensure the slide rail is level and vertical during installation. Leave at least 19mm of gap on one side to avoid sticking when pushing and pulling. The length of the slide rail should be shorter by about 50mm than the depth of the drawer to ensure that the drawer will not hit the cabinet when fully pulled out.
Finally, check the quality and protective performance. High-quality slide rails need to undergo salt spray tests. For indoor use, the salt spray test should be no less than 48 hours. For industrial or humid environments, the salt spray test should reach more than 2000 hours. Also, pay attention to the cycle life, with high-quality slide rails having a push-pull cycle of no less than 50,000 times. During the push-pull process, there should be no shaking or abnormal sounds.
